ATC450
-
- 2010-2017 BMW X3 F25
- 2010-2013 BMW X5 E70
- 2008-2014 BMW X6 E71 -

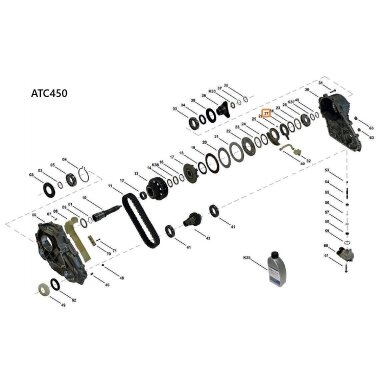

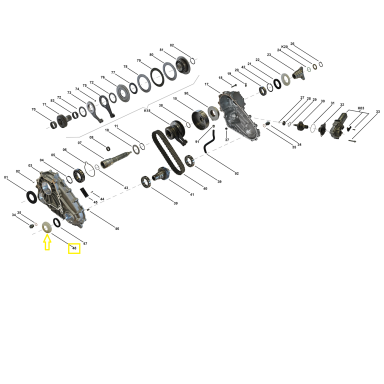

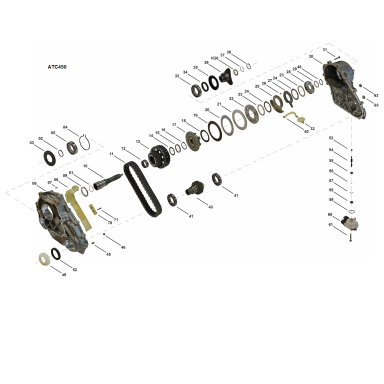

The diagram is interactive. Click the number of the required part or the text inside a box to go directly to that part’s order page. If a position has several variants, select the correct variant in the window that opens. If the required part link is inactive, contact us at info@transmida.lt or Viber / WhatsApp +37065526253. Parts whose numbers are not boxed are currently unavailable.

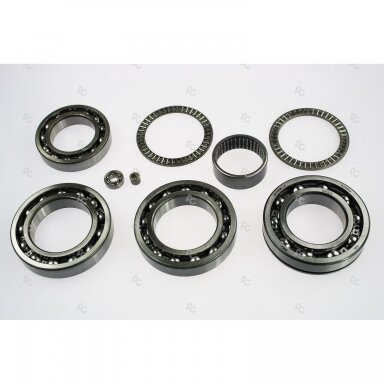

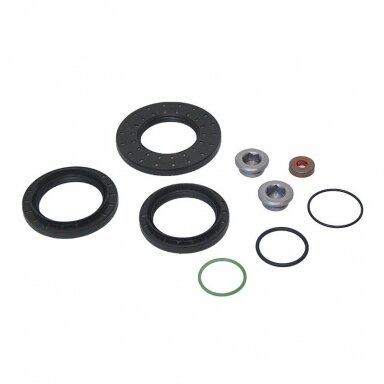

K00. Repair Kit K01. Bearing Kit K02. Sealing Kit K05. Flange Kit Rear K10. Sliding Block Kit K11. Clutch Kit K12. Shaft Actuator Kit K20. Shim Set K32. Plastic Parts Kit K37. Shim Set K38. Shim Set
1 - 32 of 52
Clutch KitCode: YATC450.CK01ATC350, ATC450, PL72 ATC, MP3023 transfercase discs set, 0BU, 0C2 BMW X1, X3, X5, X6, 5, 7, Porsche Cayenne
Price 27428 € VAT incl.
ATC35L, ATC45L, ATC450 rear flange kitCode: YATC450.FLK01Rear flange kit for ATC35L, ATC45L and ATC450 transfer cases.
Flange mounting: M12 Center bore diameter: 10 mm Overall height: approx. 55 mm Contains positions: 36, 37, 38, K20 OE codes: 27 10 7 595 650 / 27107595650, 27 10 7 645 468 / 27107645468 Quantity used: 1 kitPrice 15359 € VAT incl.
BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ringCode: SP00140Retaining ring for ATC13, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, Hyundai-ATC and Maserati-ATC transfer cases.
Years: from 2003Price 341 € VAT incl.
ATC13, ATC300–700 input shaft sealCode: SP03542Input shaft seal for ATC13, ATC13-1, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, ITC-DD295, ITC-DD295 PLA, Hyundai-ATC and Maserati-ATC transfer cases.
Dimensions: 49.6x90x7.7 mm Location: front housing, input / main shaft Years: from 2015Price 2310 € VAT incl.
Steel plateCode: YATC350.STP01Transfer case steel plate 329121 (mode clutch) for ATC350 / ATC450 / MP3010 / MP3015 / MP3023 / MP3024. Other codes: GM 19133077 / Raybestos 5111073.
Price 844 € VAT incl.
ATC350/35L/450/45L, PL72ATC, 95B, Maserati-ATC, 0FD, 9A7 screwCode: SP01045ATC350, ATC35L, ATC450, ATC45L, PL72ATC, 95B, Maserati-ATC, 0FD, 9A7
Price 400 € VAT incl.
ATC350 / PL72 ATC Actuator Shaft SealCode: SP01038Actuator shaft seal for ATC350, ATC35L, ATC450, ATC45L, PL72 ATC, 95B, Hyundai-ATC and Maserati-ATC transfer cases. Dimensions: 7.8 x 21 x 6 mm. OE numbers: 27107593452, 27 10 7 593 452, M0003274. Quantity: 1 pc.
Price 923 € VAT incl.

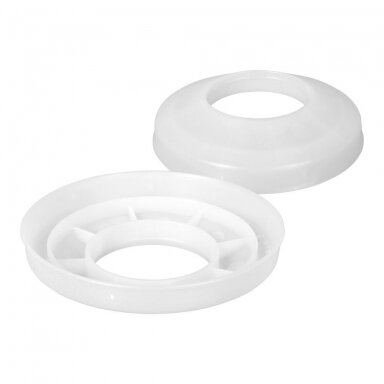

ATC13-1, ATC35L, ATC450, ATC45L rear flange dust coverCode: SP01499Plastic rear flange dust cover for ATC13-1, ATC35L, ATC450 and ATC45L transfer cases.
Location: rear flange OE code: 27 10 7 597 688 / 27107597688 Application: BMW 1, 2, 3, 4, 5, 6, 7 Series, X1, X3, X4, X5, X6, X7 Years: from 2010Price 1323 € VAT incl.
ATC350, ATC450, PL72 ATC friction plateCode: MT141001FATC350, ATC450, PL72 ATC, MP3023, CTC [4MATIC+] Transfer case friction plate OD 134 x1,7 mm 54T
Price 400 € VAT incl.
Price 12389 € VAT incl.
O-RingCode: A-ORG-102291Mercedes ML163: steering housing / steering rack
BMW: transfer case, rear flange (31 X 2.5 mm) 27107537631Price 100 € VAT incl.
ITC-DD295 ITC-PLA DCD DCS ATC350 ATC35L ATC45L retaining ringCode: O-RET-ATC350/35LRetaining ring used in ITC-DD295, ITC-PLA, DCD, DCS, ATC350, ATC35L, ATC45L, Hyundai ATC and Maserati ATC transfer cases.
Years: from 2004Price 191 € VAT incl.
O-RingCode: A-ORG-116752ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, DD295, PLA, Maserati-ATC main shaft O-ring 27107609202, 02C2D27326
Price 100 € VAT incl.
ATC300 / 350 / 450 oil drain plugCode: SP00176Oil drain plug with O-ring for BMW ATC300, ATC350, ATC450 and other ATC transfer cases from 2004. Thread: M22 x 1.5 mm. OE codes: 33117525064, 33 11 7 525 064, 02C2D27148, 6000626082, 673002349, 473904E000. Alternative codes: YATC35L.PLU01, O-SCP-ATC-XX.
Price 467 € VAT incl.
Friction disc for transfer caseCode: YATC350.FRP01ATC350 + ATC450 + PL72ATC + MP3023 + 95B + CTC [4MATIC+] - transfer case
Price 1051 € VAT incl.
SealCode: YATC400.MCS02ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, ITC DD295, Hyundai ATC, Maserati ATC
49,6x90x8 mmPrice 1183 € VAT incl.
Steel & friction disc kitCode: O-CLK-ATC350/450-AATC350 + ATC450 + PL72ATC + MP3023 + 95B - transfer case
Price 16819 € VAT incl.
O-ringCode: A-ORG-040056Ecomat: wiring harness // 6HP and 8HP): guide sleeve / connector plug //BMW transfer case: actuator
Price 070 € VAT incl.
Price 5798 € VAT incl.
SealCode: YATC400.MCS01ATC350/400/450/500/700 W61G CLAD SEAL OUTPUT (RADIAL) 52X80X8/12 mm 27107539265 331401LA0A
Price 1263 € VAT incl.
ATC350 / ATC400 / ATC450 / ATC500 / ATC700 output shaft oil sealCode: YATC400.MCS03ATC350/400/450/500/700 CLAD SEAL FRONT OUTPUT 50x70x8/12 mm
Price 1123 € VAT incl.
ChainCode: YATC450.CH01ATC450, BMW X3 ( F25 ) , X5 ( E70 ) , X6 ( E71 , E72 ) xDrive 34,70mm Wide x 40 Segments x 1-Grey Point
Price 30100 € VAT incl.
ATC450 shim kitCode: SP05038Shim kit for ATC450 transfer case. Used in: BMW X3, X5, X6. Years: 2010–2012
Price 8701 € VAT incl.
Price 1183 € VAT incl.
ATC450 thrust washerCode: SP01932Thrust washer for ATC450 transfer case.
Used in: BMW X3, X5, X6.
Years: 2010–2012Price 1395 € VAT incl.
ATC350, ATC450, 95B, PL72 ATC steel ballCode: SP01085Steel ball used in ATC350, ATC450, 95B and PL72 ATC transfer cases.
3 pcs. are used, sold individually. Application: BMW X1, X3, X5, X6, 5 and 7 Series; Porsche Cayenne, Macan Years: from 2008Price 150 € VAT incl.
ATC350, ATC450 hub retaining ringCode: SP01034Hub retaining ring for ATC350 and ATC450 transfer cases.
Location: hub Application: BMW X1, X3, X5, X6, 5 and 7 Series Years: from 2008Price 381 € VAT incl.
ATC13, ATC300–700 rear flange O-ringCode: SP01037Rear flange O-ring used in ATC13, ATC13-1, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, Hyundai-ATC and Maserati-ATC transfer cases.
OE / reference codes: 27 10 7 599 326 / 27107599326, 6000626079, 673002346, 27 10 7 537 631 / 27107537631 Location: rear flange Years: from 2008Price 344 € VAT incl.
