AR4
-
AMC Eagle Premier
Renault Espace, R21, R25
AR4,4-Speed,FWD 1988-1998 -
All parts from this catalog can be ordered. The goods are shipped directly from the warehouse in the Netherlands. Delivery time 5-7 working days. Urgent orders are fulfilled within 1-2 working days (if ordered before 12 noon) Express shipments cost from 36 to 120 euros, depending on the weight of the shipment (in the territory of the European Union).
1 - 31 of 31A95 F2 B2 brake friction plateCode: AR4.FRP12B2 brake friction plate for A95 F2 automatic transmission. Double-sided friction lining, inner teeth: 32. OD 154–155 mm, thickness 1.60 mm. Commonly ordered quantity: 4–6 pcs.
Price 800 € VAT incl.1002 €You save 202 €
01M / 0AW / 8HP O-ringCode: A-ORG-022558O-ring for 01M, 0AW, 0B2 / DL800, AD4, AD8, AR4, 8HP45 / 50 / 70 and other transmissions. Used in different fitting locations: planetary assembly, pressure tube, drain plug, axle drive, hydraulic control unit or oil cooler. OE numbers: 0634 304 287, WHT 004 815, 095 323 737.
Price 083 € VAT incl.
AD4 / AG4 pump bushingCode: AG4.BUS01Pump body bushing for AD4 / AG4 automatic transmission. Split bi-metal bushing for 4-speed gearboxes. Dimensions: ID 51.3 mm, OD 53.6 mm, width 10 mm. Quantity: 1 pc.
Price 600 € VAT incl.
AG4 K2 / F2 clutch pistonCode: AG4.PIS52K2 / F2 clutch piston for AG4 automatic transmission. Fits 4-speed gearboxes used in Audi, Volkswagen, Skoda, Seat, Dodge and Renault models. Molded piston with integrated seal. Dimensions: ID 76 mm, OD 117.3 mm, height 11.1 mm. Quantity: 1 pc.
Price 1234 € VAT incl.
097 left axle sealCode: AG4.MCS06Left-hand axle seal for 097 automatic transmission. Suitable for 4-speed gearboxes. Dimensions: ID 45 mm, OD 65 mm, width 8 / 10 mm. Quantity: 1 pc.
Price 1274 € VAT incl.

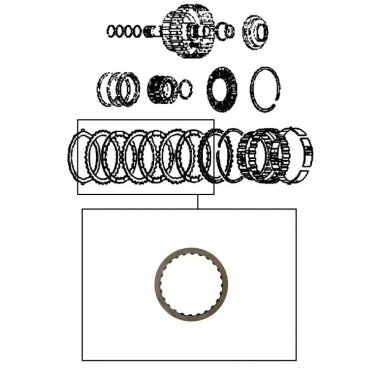

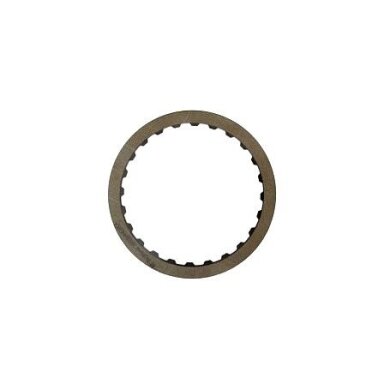

FRIKCINIS DISKELISCode: AR4.FRP05Friction plate K3 3-4 Clutch internal 01M 00-03 103mm 22T 1.25mm 095323941C 095323941A
Price 315 € VAT incl.
Price 498 € VAT incl.
AD4 / AD8 / AR4 pump O-ringCode: AR4.OR01Pump O-ring for 095, 096, 01M, 098, 01P, 097, 01N, 099, 01J, AD4, AD8 and AR4 transmissions. Used for the oil pump, differential or axle drive, depending on transmission type. Quantity: 1 pc.
Price 436 € VAT incl.
PistonCode: AR4.PIS01AR4, AD8, AD4, 095, 096, 01M, 098, 01P, 097, 01N, 1990-12/94 C1 servo, forward clutch transmission piston, rubber-metal
Price 2729 € VAT incl.
SealCode: AG4.MCS01Oil pump seal,automatic transmission 01M 01N 01P 096 097 098 099 AR4 AD4 AD8 89-up 51X65X7
Price 1110 € VAT incl.
Friction plateCode: AR4.FRP02Friction plate B2 FRONT BRAKE 01M 01N 01P 096 097 098 099 AR4 AD4 AD8 89-up 155mm 32T 1.6mm 095323495
Price 500 € VAT incl.
ŽIEDELISCode: AG4.SSR01AG4, AD4, AD8, AR4 AG4/VW095 S-RING (NEED 3X PER TRANS) TURBINE SHAFT, OD 21 mm
Price 944 € VAT incl.
FRIKCINIS DISKELISCode: AR4.FRP13Friction plate B1 LOW REVERSE 01M 01N 01P 096 097 098 099 AR4 AD4 AD8 89-up 146mm 50T 1.6mm 095323231A 095323231C 146x1,60x50T
Price 1061 € VAT incl.
FRIKCINIS DISKELISCode: AR4.FRP53095, 096, 01M, 098, 01P, 097, 01N - AD4, AD8, AR4 - B1, low reverse brake, rear 146x1,60x50T
Price 974 € VAT incl.
STŪMOKLISCode: AG4.PIS04B1 LOW REVERSE A/T 01M 01N, 01P 096 097 098 099 AR4 AD4 AD8 89-up 095323479B
Price 4343 € VAT incl.
SpragCode: AG4.OWC03Low roller / sprag one-way clutch for AG4 (all types) / AR4 / AD4 / AD8 transmissions (1990-up). Qty per transmission: 1.
Price 5261 € VAT incl.
