4HP18

  • ZF4HP18
    4-Speed Automatic Transmission
    AWD, Hydraulic Control
    Manufacturer: ZF
    1050 000 xxx, 1050000xxx

  •  All parts from this catalog can be ordered. The goods are shipped directly from the warehouse in the Netherlands. Delivery time 5-7 working days. Urgent orders are fulfilled within 1-2 working days (if ordered before 12 noon) Express shipments cost from 36 to 120 euros, depending on the weight of the shipment (in the territory of the European Union).

    Citroen XM
    Fiat 2000, 2500, Croma Lancia Chroma, Dedra, Thema
    Maserati 228, 430, 430 Biturbo
    Peugeot 605
    Saab 9000

    Overhaul Kit Overhaul Kit   -15%
    Overhaul Kit
    Code: 1050298007

    4HP18

    Price 8001 € VAT incl.
    9413 € You save 1412 €
    Add to cart
    Snap Ring Snap Ring   -6%
    Snap Ring
    Code: 0750113029

    Fits ZF4HP18, ZF5HP18 ZF5HP19 models, pump to housing, 48.3 X 52.0 X 2.5 mm

    Price 510 € VAT incl.
    543 € You save 033 €
    Add to cart
    4HP24, 3HP22 (B/C/D) Steel plate
    4HP24, 3HP22 (B/C/D) Steel plate
    Code: 3HP22.STP03
    4HP24A, 018, 01F, 01K, 3HP22Q, 4HP18, 4HP18FLA, 4HP18FLE, 4HP18QE, 4HP22, 4HP22A, 4HP22EH, 4HP22HL B/C/D clutch Steel plate.
    Price 310 € VAT incl.
    Add to cart
    Breather cap
    Breather cap
    Code: 4HP22.CAP01

    4 HP 22 ;4 HP 18 FLE ;5 HP 24 ;4 HP 24 ;4 HP 18 FL ;5 HP 24 LAENGS ;4 HP 18 EW ;4 HP 22 N EH  BREATHER CAP

    Price 361 € VAT incl.
    Add to cart
    Gasket
    Gasket
    Code: 4HP14.GAS04

    4HP14, 4HP18  FILTER GASKET 1036326117

    Price 427 € VAT incl.
    Add to cart
    FRICTION PLATE KIT
    FRICTION PLATE KIT
    Code: 4HP18.FRK02

    4HP18 FRICTION KIT W/BW PLATE

    Price 14847 € VAT incl.
    Add to cart
    Friction plate Friction plate
    Friction plate
    Code: O-FRD-5HP18/19-AC

    4HP18, 4HP18E, 4HP18FL, 4HP18FLE, 4HP18A, 4HP18FLA, 4HP18Q - 05HP18, 5HP18A - 5HP19FL, 5HP19FLA, 5HP19HL, 5HP19HLA - A-clutch
    146.7 OD x 1.60mm x 30T

    Price 663 € VAT incl.
    Add to cart
    O-ring O-ring
    O-ring
    Code: 5HP18.OR01

    4HP18/5HP18/5HP19 F CL MOD O RING ALSO 0AM ACC ORING

    Price 530 € VAT incl.
    Add to cart
    ZF 4HP/5HP/6HP oil pump plate O-ring ZF 4HP/5HP/6HP oil pump plate O-ring
    ZF 4HP/5HP/6HP oil pump plate O-ring
    Code: 5HP18.OR02

    Large oil pump plate O-ring for ZF 4HP / 5HP / 6HP automatic transmissions. Dimensions: 214x220x3.00 mm. This O-ring replaces A-ORG-101064. OE / ZF codes: 0734.313.064 / 0734 313 064 / 0734313064, 24 31 1 219 166 / 24311219166. Alternative code: A-ORG-109790.

    Price 800 € VAT incl.
    Add to cart
    Sealing ring Sealing ring
    Sealing ring
    Code: 0734317219

    5HP18, E / F clutch ZF 5HP18 / ZF 5HP19FLA (91-up)

    Price 427 € VAT incl.
    Add to cart
    Seal Seal
    Seal
    Code: 0750111247

    4HP18 / 4HP24  42X55X7

    Price 956 € VAT incl.
    Add to cart
    Pan Gasket Pan Gasket
    Pan Gasket
    Code: 4HP18.GAS55

    4HP18 SUMP GASKET

    Price 586 € VAT incl.
    Add to cart
    Sealing ring Sealing ring
    Sealing ring
    Code: 0750113015

    4HP18, 5HP18, 5HP19 - C-clutch, 16S - output 54X58X2.5

    Price 380 € VAT incl.
    Add to cart
    Seal Seal
    Seal
    Code: 6HP26.MCS01

    4HP18, 4HP20, 5HP19, 6HP19/26/28/32  45x58x7 mm

    Price 500 € VAT incl.
    Add to cart
    Seal
    Seal
    Code: 0750111193

    Oil seal Pinion left ZF 4HP18FL ZF 4HP18FLA ZF 4HP18Q 88-97 0750111193 07343193399

    Price 700 € VAT incl.
    Add to cart
    OUTER RING OUTER RING
    OUTER RING
    Code: A-ORG-101050

    4HP18 , 4HP22 "D", 5HP18,  5HP19 "C" , "D/G"

    Price 600 € VAT incl.
    Add to cart
    Retainer
    Retainer
    Code: 1050331008

    4HP18 79986E, Retainer, ZF4HP18 Reverse Clutch Return Spring

    Price 782 € VAT incl.
    Add to cart
    Overhaul Kit Overhaul Kit
    Overhaul Kit
    Code: 1050298043

    4HP18Q, Alfa - Peugeot - Citroen - Lancia

    Price 21808 € VAT incl.
    Add to cart
    O-Ring O-Ring
    O-Ring
    Code: 0734313069

    4HP22, 5HP18, small, inner o-ring B-clutch

    Price 174 € VAT incl.
    Add to cart
    Friction plate Friction plate
    Friction plate
    Code: 1056272024

    Friction plate B clutch ZF 4HP18FL ZF 4HP18FLA ZF 4HP18Q ZF 5HP18 86-up 147mm 30T 2mm 1056272024 313702-200 104702-200

    Price 625 € VAT incl.
    Add to cart
    BUSHING BUSHING
    BUSHING
    Code: 1050309078

    4HP18 4HP18FLA 4HP18Q Citroen/Peugeot

    Price 400 € VAT incl.
    Add to cart
    Bearing Bearing
    Bearing
    Code: 1056272052

    4HP18 5HP18 5HP19 5HP24

    Price 2696 € VAT incl.
    Add to cart
    Bearing Bearing
    Bearing
    Code: 1056232103

    4 HP 18, 4 HP 18 FLA, 4 HP 18 FLE, 4 HP 18 QUER, 5 HP 18, 5 HP 18 KD, 5HP-18 A

    Price 1833 € VAT incl.
    Add to cart
    Snap Ring
    Snap Ring
    Code: G-CRC-77722-3,8

    4HP18, 5HP19, 5HP19FL, 5HP19FLA, 5HP19HL, 5HP19HLA - snap ring / circlip D-clutch - 3,8mm

    Price 763 € VAT incl.
    Add to cart
    ZF 4HP18FL valve body gasket
    ZF 4HP18FL valve body gasket
    Code: 4HP18.GAS08

    Valve body gasket for ZF 4HP18FL automatic transmissions used in Audi vehicles. ZF code: 1050.327.091 / 1050 327 091 / 1050327091.

    Price 450 € VAT incl.
    Add to cart
    Seal
    Seal
    Code: 4HP14.MCS01

    4HP14, 4HP18 DRIVE SHAFT SEAL ROVER (40x58x10)

    Price 930 € VAT incl.
    Add to cart
    Oil pump
    Oil pump
    Code: 4HP18.PUM01

    4HP18, 4HP18QE, PSA, Alfa Romeo, PUMP BODY & GEARS

    Price 66158 € VAT incl.
    Add to cart
    ĮVORĖ
    ĮVORĖ
    Code: 4HP18.BUS03
    Price 257 € VAT incl.
    Add to cart
    Valve body
    Valve body
    Code: 4HP18.VB01

    4HP18 VALVE BODY 1050126093

    Price 142279 € VAT incl.
    Add to cart

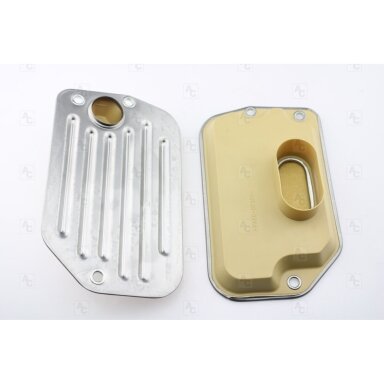

    TRANSMISIJOS FILTRAS
    TRANSMISIJOS FILTRAS
    Code: 4HP18.FIL02
    Price 957 € VAT incl.
    Add to cart
    Seal Seal
    Seal
    Code: 4HP18.MCS01

    4HP18, 4HP20, 5HP19, 6HP19/26/28/32 oilpump 45x58x7 mm

    Price 794 € VAT incl.
    Add to cart
    Friction plate Friction plate
    Friction plate
    Code: 5HP19.FRP54

    4HP18, 4HP18E, 4HP18FL, 4HP18FLE, 4HP18A, 4HP18FLA, 4HP18Q, 5HP18, 5HP18A, 5HP19FL, 5HP19FLA, 5HP19HL, 5HP19HLA , "E", 107,9 x 1,55 x 36T

    Price 500 € VAT incl.
    Add to cart
