ATC400

  • - 2003-2010 BMW X3 E83

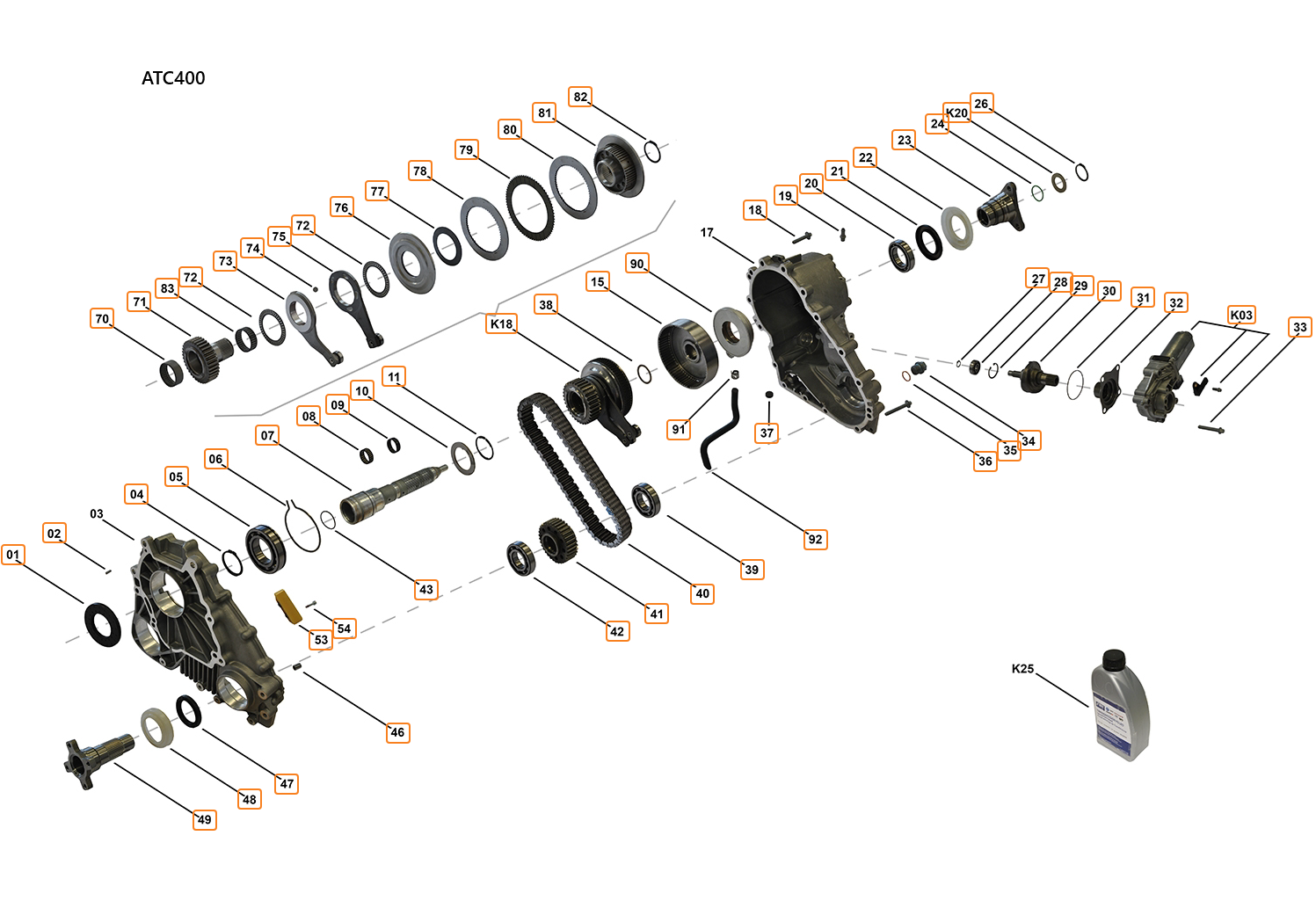

  • The diagram is interactive. Click the number of the part you are interested in or the text inside a box and you will be taken directly to that part’s order page. If a position has several variants, select the correct variant in the window that opens. If the required part link is inactive, write to us at info@transmida.lt or via Viber / WhatsApp +37065526253. Parts whose numbers are not boxed are currently unavailable.








    K00. Repair Kit K01. Bearing Kit K02. Sealing Kit K03. Actuator Kit K10. Sliding Block Kit K15. Oil Pump Assembly K18. Sprocket Assembly K20. Shim Set

    K03. Actuator Kit K18. Sprocket Assembly K20. Shim Set 01. Radial Seal 02. Pin 04. Retaining Ring 05. Ball Bearing 06. Retaining Ring 07. Main Shaft Assembly 08. Needle bearing 09. Tolerance Ring 10. Thrust Washer 11. Retaining Ring 15. Drum 18. Tapping Screw 19. Vent Pipe 20. Ball Bearing 21. Radial Seal 22. Slinger 23. Rear Flange 24. O-Ring 26. Retaining Ring 27. Retaining Ring 28. Ball Bearing 29. Retaining Ring 30. Actuator Shaft Assembly 31. O-Ring 32. Needle Sleeve 33. Screw 34. Plug 35. Sealing Washer 36. Tapping Screw 37. Magnet 38. Thrust Washer 39. Ball Bearing 40. Chain 41. Sprocket 42. Ball Bearing 43. O-Ring 46. Pin 47. Radial Seal 48. Slinger 49. Front Flange 53. Sliding Block 54. Screw 70. Needle Sleeve 71. Spur Gear 72. Axial Needle Bearing 72. Axial Needle Bearing 73. Actuator Ring 74. Ball 75. Actuator Ring 76. Piston 77. Disc Spring 78. Shim Set 79. Friction Plate 80. Steel Plate 81. Hub 82. Retaining Ring 83. Axial Needle Bearing 90. Oil Pump 91. Clamp 92. Suction Pipe

    ATC400, CTX ball bearing ATC400, CTX ball bearing
    ATC400, CTX ball bearing
    Code: SP00186

    Ball bearing used in the ATC400 transfer case and CTX assembly behind the oil pump.

    Application: BMW X3 Years: 2003–2011
    Price 1386 € VAT incl.
    Add to cart
    ATC400 tolerance ring ATC400 tolerance ring
    ATC400 tolerance ring
    Code: SP00741

    Tolerance ring for the ATC400 transfer case.

    Application: BMW X3 Years: 2003–2011 Quantity used: 1 pc.
    Price 1088 € VAT incl.
    Add to cart
    Shaft actuator assy Shaft actuator assy   -13%
    Shaft actuator assy
    Code: O-SHA-ATC4/5/7

    ATC400, ATC500, ATC700 marked No.30 in the diagrams

    Price 16464 € VAT incl.
    18848 € You save 2384 €
    Add to cart
    NADLE BEARING SET NADLE BEARING SET
    NADLE BEARING SET
    Code: SP00134

    ATC300 / ATC400 / ATC500 / ATC 700 / ITC PLA / DCD / NEEDLE BEARING SET (2 pieces)

    Price 1900 € VAT incl.
    Add to cart
    SEAL KIT SEAL KIT
    SEAL KIT
    Code: A-TCK-45700

    ATC350/400/450/500/700 Transfer case CLAD SEAL OUTPUT (RADIAL)

    Price 4500 € VAT incl.
    Add to cart
    ATC13, ATC300–700 input shaft seal ATC13, ATC300–700 input shaft seal
    ATC13, ATC300–700 input shaft seal
    Code: SP03542

    Input shaft seal for ATC13, ATC13-1, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, ITC-DD295, ITC-DD295 PLA, Hyundai-ATC and Maserati-ATC transfer cases.

    Dimensions: 49.6x90x7.7 mm Location: front housing, input / main shaft Years: from 2015
    Price 2310 € VAT incl.
    Add to cart
    Ball Bearing 6210X5NC3 ATC transfer Ball Bearing 6210X5NC3 ATC transfer
    Ball Bearing 6210X5NC3 ATC transfer
    Code: A-BBG-ATC-MS-A

    Ball bearing used in BMW ATC transfer cases.

    Bearing code: 6210X5NC3 Alternative marking: 6210x5N C3 Dimensions: 90x20x49.95 mm Internal clearance: C3 Fits: ATC13, ATC13-1, ATC35L, ATC300, ATC350, ATC400, ATC500, ATC700
    Price 2195 € VAT incl.
    Add to cart

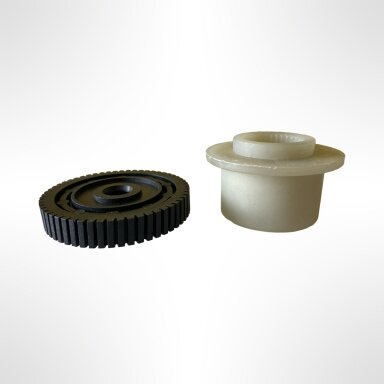

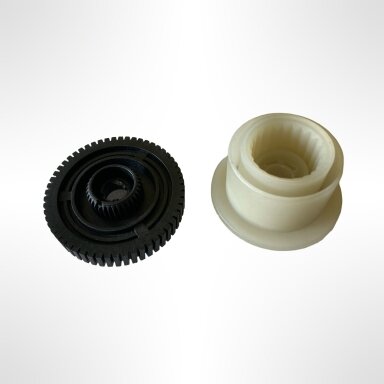

    Actuator wheel kit Actuator wheel kit
    Actuator wheel kit
    Code: A-AWK-ATC400/500

    ATC400, ATC500, ATC700 - for transfer case actuator 27 10 7 566 296, plastic

    Price 4291 € VAT incl.
    Add to cart
    Ring Ring
    Ring
    Code: O-TRI-ATC400
    Price 1388 € VAT incl.
    Add to cart
    Friction plate Friction plate
    Friction plate
    Code: ATC500-1F

    ATC300, ATC400, ATC500, ATC700 ID 100 x 1.6 x 72T

    Price 595 € VAT incl.
    Add to cart
    O-Ring O-Ring
    O-Ring
    Code: A-ORG-102291

    Mercedes ML163: steering housing / steering rack
    BMW: transfer case, rear flange (31 X 2.5 mm) 27107537631

    Price 100 € VAT incl.
    Add to cart
    O-Ring O-Ring
    O-Ring
    Code: A-ORG-116752

    ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, DD295, PLA, Maserati-ATC  main shaft O-ring 27107609202, 02C2D27326

    Price 100 € VAT incl.
    Add to cart
    ATC300 / 350 / 450 oil drain plug ATC300 / 350 / 450 oil drain plug
    ATC300 / 350 / 450 oil drain plug
    Code: SP00176

    Oil drain plug with O-ring for BMW ATC300, ATC350, ATC450 and other ATC transfer cases from 2004. Thread: M22 x 1.5 mm. OE codes: 33117525064, 33 11 7 525 064, 02C2D27148, 6000626082, 673002349, 473904E000. Alternative codes: YATC35L.PLU01, O-SCP-ATC-XX.

    Price 467 € VAT incl.
    Add to cart
    Bearing Bearing
    Bearing
    Code: O-BBG-116724

    ATC400, ATC500, ATC700 - actuator motor shaft bearing
    Marked No.28 in the diagrams

    Price 1199 € VAT incl.
    Add to cart
    Friction plate
    Friction plate
    Code: B-FRD-ATC3/4/7

    ATC300 + ATC400 + ATC500 + ATC700 - Transfer Case - Aftermarket plate with different friction material design than the OE plate

    Price 1154 € VAT incl.
    Add to cart
    REPAIR KIT
    REPAIR KIT
    Code: A-RPK-ATC457-ACT

    ATC400, ATC500 - for transfer case actuator 27107566296

    Price 12091 € VAT incl.
    Add to cart

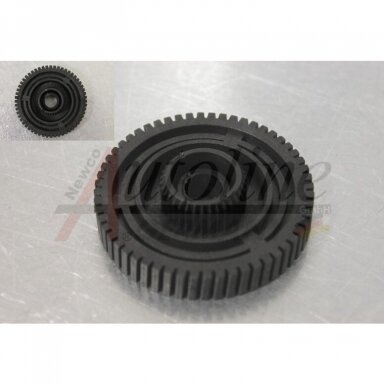

    Gear
    Gear
    Code: A-TOG-ATC400/500

    ATC400, ATC500 - for transfer case actuator 27107566296

    Price 3717 € VAT incl.
    Add to cart
    Ball Ball
    Ball
    Code: O-BAL-ATCxx

    ATC300, ATC400, ATC500, ATC700, ITC DD95, ITC PLA - transfer case

    Price 250 € VAT incl.
    Add to cart

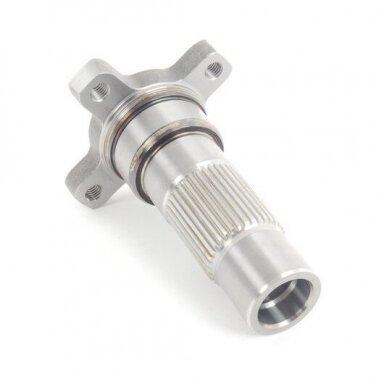

    Flange Flange
    Flange
    Code: SP00109

    ATC400 Transfer Case Output Flange BMW 27107537664

    Price 15947 € VAT incl.
    Add to cart
    NADLE BEARING NADLE BEARING
    NADLE BEARING
    Code: O-NBG-11915

    ATC300, ATC400, ITC DD295, ITC PLA, DCD
    X3, Discovery3/4, Range Rover, Range Rover Sport, ML, GL
    722.6, 722.9, 724.2 - intermediate planetary

    Price 700 € VAT incl.
    Add to cart
    Bearing
    Bearing
    Code: YATC300.TOR01

    ATC300/400/500/700/ITC CLUTCH TORRINGTON BEARING (2PER) TRANSFER CASE

    Price 1100 € VAT incl.
    Add to cart
    Actuator ring
    Actuator ring
    Code: YATC400.ACT01

    ATC400/500/700 ACTUATOR RING BMW X3/X5/X6 (2003- ) - DOG LEG ARM

    Price 11170 € VAT incl.
    Add to cart
    ATC400, ATC500, ATC700 transfer case actuator ring ATC400, ATC500, ATC700 transfer case actuator ring
    ATC400, ATC500, ATC700 transfer case actuator ring
    Code: YATC400.ACT02

    Transfer case actuator ring for ATC400, ATC500 and ATC700 transfer cases.

    Application: BMW X3, X5, X6 Years: from 2003 Version: straight arm
    Price 13129 € VAT incl.
    Add to cart
    Seal Seal
    Seal
    Code: YATC400.MCS02

    ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, ITC DD295, Hyundai ATC, Maserati ATC
    49,6x90x8 mm

    Price 1183 € VAT incl.
    Add to cart
    ATC 400 Oil pump ATC 400 Oil pump
    ATC 400 Oil pump
    Code: YATC400.PUM01

    ATC400 PUMP ASSY BMW X3/5/6
    Alternative codes: O-OPP-ATC400, SP00177

    Price 12379 € VAT incl.
    Add to cart
    BMW ATC500 ATC400 ATC700 Clutch Thrust Washer BMW ATC500 ATC400 ATC700 Clutch Thrust Washer
    BMW ATC500 ATC400 ATC700 Clutch Thrust Washer
    Code: YATC400.THW01

    ATC400, ATC500, ATC700 THRUST WASHER DRUM TO CLUTCH

    Price 356 € VAT incl.
    Add to cart
    ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / PL72 Needle Sleeve ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / PL72 Needle Sleeve
    ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / PL72 Needle Sleeve
    Code: O-NBG-116745

    ATC300, ATC400, ATC500, ATC700, PL72 ATC
    picture 70 in exploded view

    Price 1451 € VAT incl.
    Add to cart
    BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ring BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ring
    BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ring
    Code: SP00140

    Retaining ring for ATC13, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, Hyundai-ATC and Maserati-ATC transfer cases.

    Years: from 2003
    Price 341 € VAT incl.
    Add to cart
    Bearing Bearing
    Bearing
    Code: O-BBG-ATC-OU-A

    ATC13, ATC35L, ATC300, ATC350, ATC400, ATC500, ATC700 transfer case bearing 45x75x16 mm

    Price 2394 € VAT incl.
    Add to cart
    Retaining Ring Retaining Ring
    Retaining Ring
    Code: SP00160

    ATC300, ATC400, ATC500, ATC700  Retaining Ring

    Price 347 € VAT incl.
    Add to cart
    ATC400 bearing kit ATC400 bearing kit
    ATC400 bearing kit
    Code: YATC400.BK01

    Bearing kit for the ATC400 transfer case used in BMW X3 vehicles.

    Kit contains: 4 ball bearings and 1 needle bearing Diagram positions: 05, 08, 20, 39, 42
    Price 10104 € VAT incl.
    Add to cart
    DCD DCS transfer case chain guide kit DCD DCS transfer case chain guide kit
    DCD DCS transfer case chain guide kit
    Code: Y4MATIC.RET01

    Chain guide kit for DCS and DCD 4MATIC transfer cases.

    DCS: used only in transfer cases A2512801700 and A2512802800 DCD: used in all models Kit includes: 2 chain guides and mounting bolts
    Price 5900 € VAT incl.
