ATC700

  • - 2006-2013 BMW X5 E70
    - 2008-2014 BMW X6 E71, E72
    Gamintojas: Magna Powertrain

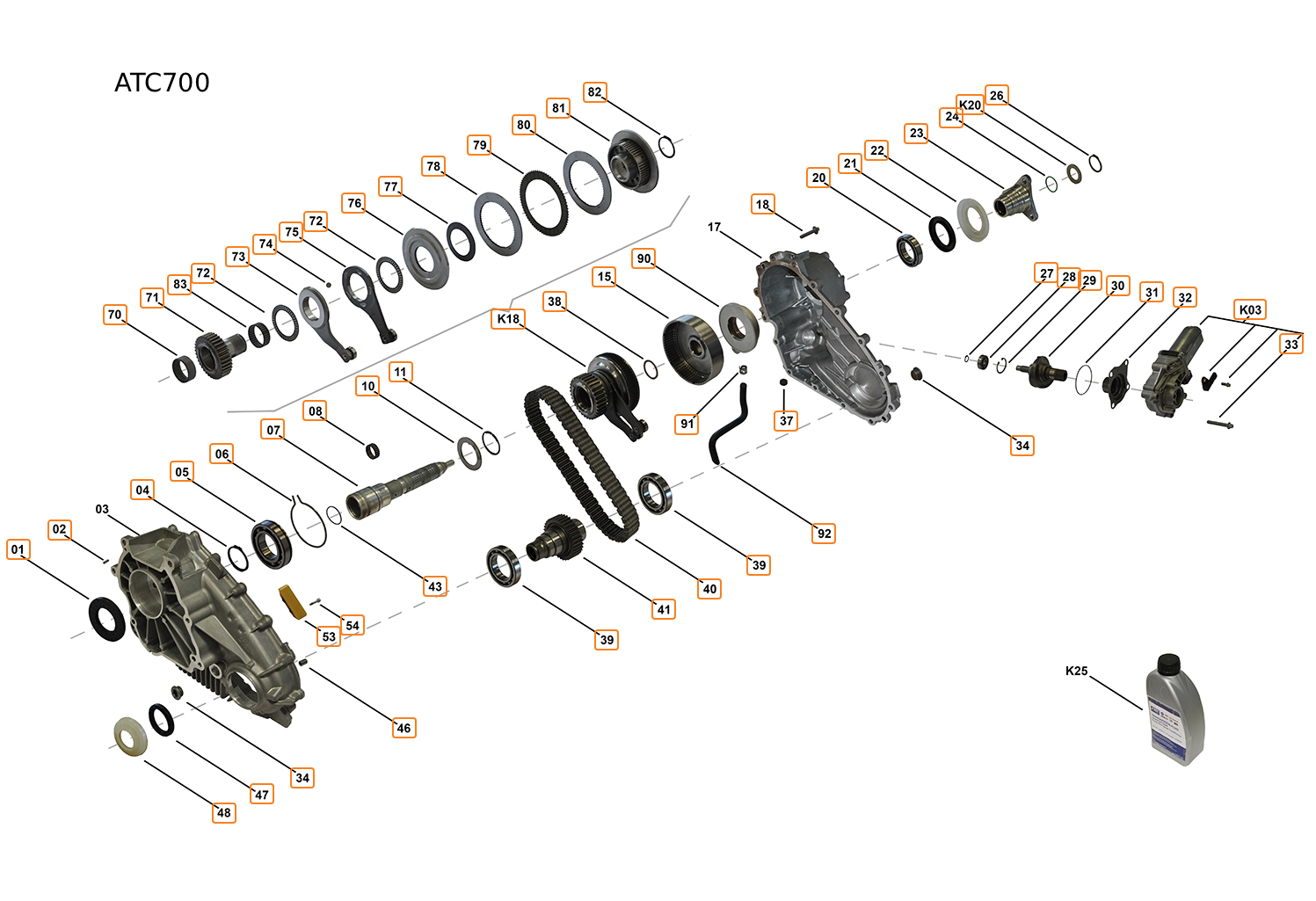

  • The diagram is interactive. Click the number of the required part or the text inside a box to go directly to that part’s order page. If a position has several variants, select the correct variant in the window that opens. If the required part link is inactive, contact us at info@transmida.lt or Viber / WhatsApp +37065526253. Parts whose numbers are not boxed are currently unavailable.








    K00. Repair Kit K01. Bearing Kit K02. Sealing Kit K03. Actuator Kit K10. Sliding Block Kit K15. Oil Pump ASM K18. Sprocket ASM K20. Shim Set

    82. Retaining Ring 26. Retaining Ring K20. Shim Set 81. Hub 24. O-Ring 80. Steel Plate 23. Flange Rear 79. Friction plate 22. Slinger 21. Radial Sealing 78. Shim Set 20. Ball Bearing 77. Disk Spring 76. Piston 18. Tapping Screw 72. Needle Ring Axial 72. Needle Ring Axial 75. Actuator Ring 74. Ball 73. Actuator Ring 90. Oil Pump 27. Retaining Ring 15. Drum 28. Ball Bearing 29. Retaining Ring 83. Needle Ring Axial 30. Shaft Actuator Assy 31. O-Ring 32. Needle Sleeve 71. Sprocket 38. Thrust Washer K03. Actuator Kit 70. Needle Sleeve K18. Sprocket ASM 33. Screw 11. Retaining Ring 10. Thrust Washer 08. Needle Bearing 37. Magnet 91. Clamp 07. Main Shaft ASM 34. Plug 34. Plug 06. Retaining Ring 05. Ball Bearing 04. Retaining Ring 02. Pin 92. Suction Pipe 01. Radial Sealing 39. Ball Bearing 39. Ball Bearing 43. O-Ring 40. Chain 41. Sprocket 54. Screw 53. Sliding Block 46. Pin 47. Radial Sealing 48. Slinger

    Shaft actuator assy Shaft actuator assy   -13%
    Shaft actuator assy
    Code: O-SHA-ATC4/5/7

    ATC400, ATC500, ATC700 marked No.30 in the diagrams

    Price 16464 € VAT incl.
    18848 € You save 2384 €
    Add to cart
    NADLE BEARING SET NADLE BEARING SET
    NADLE BEARING SET
    Code: SP00134

    ATC300 / ATC400 / ATC500 / ATC 700 / ITC PLA / DCD / NEEDLE BEARING SET (2 pieces)

    Price 1900 € VAT incl.
    Add to cart

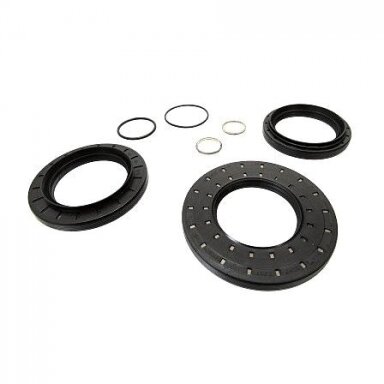

    SEAL KIT SEAL KIT
    SEAL KIT
    Code: A-TCK-45700

    ATC350/400/450/500/700 Transfer case CLAD SEAL OUTPUT (RADIAL)

    Price 4500 € VAT incl.
    Add to cart
    BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ring BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ring
    BMW-ATC, Hyundai-ATC, Maserati-ATC retaining ring
    Code: SP00140

    Retaining ring for ATC13, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, Hyundai-ATC and Maserati-ATC transfer cases.

    Years: from 2003
    Price 341 € VAT incl.
    Add to cart
    ATC13, ATC300–700 input shaft seal ATC13, ATC300–700 input shaft seal
    ATC13, ATC300–700 input shaft seal
    Code: SP03542

    Input shaft seal for ATC13, ATC13-1, ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, ITC-DD295, ITC-DD295 PLA, Hyundai-ATC and Maserati-ATC transfer cases.

    Dimensions: 49.6x90x7.7 mm Location: front housing, input / main shaft Years: from 2015
    Price 2310 € VAT incl.
    Add to cart
    Retaining Ring Retaining Ring
    Retaining Ring
    Code: SP00160

    ATC300, ATC400, ATC500, ATC700  Retaining Ring

    Price 347 € VAT incl.
    Add to cart
    Ball Bearing 6210X5NC3 ATC transfer Ball Bearing 6210X5NC3 ATC transfer
    Ball Bearing 6210X5NC3 ATC transfer
    Code: A-BBG-ATC-MS-A

    Ball bearing used in BMW ATC transfer cases.

    Bearing code: 6210X5NC3 Alternative marking: 6210x5N C3 Dimensions: 90x20x49.95 mm Internal clearance: C3 Fits: ATC13, ATC13-1, ATC35L, ATC300, ATC350, ATC400, ATC500, ATC700
    Price 2195 € VAT incl.
    Add to cart
    Bearing Bearing
    Bearing
    Code: O-BBG-ATC-OU-A

    ATC13, ATC35L, ATC300, ATC350, ATC400, ATC500, ATC700 transfer case bearing 45x75x16 mm

    Price 2394 € VAT incl.
    Add to cart
    Friction plate Friction plate
    Friction plate
    Code: ATC500-1F

    ATC300, ATC400, ATC500, ATC700 ID 100 x 1.6 x 72T

    Price 595 € VAT incl.
    Add to cart
    O-Ring O-Ring
    O-Ring
    Code: A-ORG-102291

    Mercedes ML163: steering housing / steering rack
    BMW: transfer case, rear flange (31 X 2.5 mm) 27107537631

    Price 100 € VAT incl.
    Add to cart
    O-Ring O-Ring
    O-Ring
    Code: A-ORG-116752

    ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, DD295, PLA, Maserati-ATC  main shaft O-ring 27107609202, 02C2D27326

    Price 100 € VAT incl.
    Add to cart
    ATC300 / 350 / 450 oil drain plug ATC300 / 350 / 450 oil drain plug
    ATC300 / 350 / 450 oil drain plug
    Code: SP00176

    Oil drain plug with O-ring for BMW ATC300, ATC350, ATC450 and other ATC transfer cases from 2004. Thread: M22 x 1.5 mm. OE codes: 33117525064, 33 11 7 525 064, 02C2D27148, 6000626082, 673002349, 473904E000. Alternative codes: YATC35L.PLU01, O-SCP-ATC-XX.

    Price 467 € VAT incl.
    Add to cart

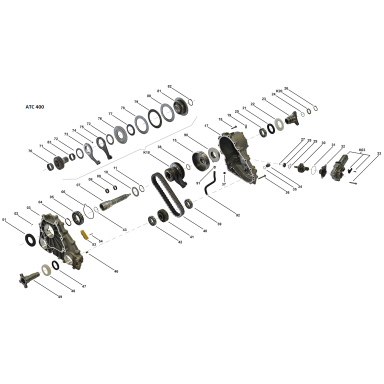

    Bearing Bearing
    Bearing
    Code: O-BBG-116724

    ATC400, ATC500, ATC700 - actuator motor shaft bearing
    Marked No.28 in the diagrams

    Price 1199 € VAT incl.
    Add to cart
    ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / PL72 Needle Sleeve ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / PL72 Needle Sleeve
    ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / PL72 Needle Sleeve
    Code: O-NBG-116745

    ATC300, ATC400, ATC500, ATC700, PL72 ATC
    picture 70 in exploded view

    Price 1451 € VAT incl.
    Add to cart
    BMW ATC500 ATC400 ATC700 Clutch Thrust Washer BMW ATC500 ATC400 ATC700 Clutch Thrust Washer
    BMW ATC500 ATC400 ATC700 Clutch Thrust Washer
    Code: YATC400.THW01

    ATC400, ATC500, ATC700 THRUST WASHER DRUM TO CLUTCH

    Price 356 € VAT incl.
    Add to cart

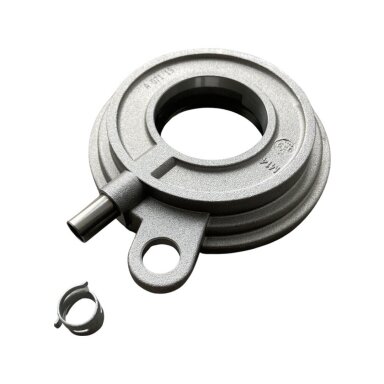

    Oil pump Oil pump
    Oil pump
    Code: YATC500.PUM01

    ATC500, ATC700 PUMP ASSY BMW X5/X6 (2003-2013)

    Price 14520 € VAT incl.
    Add to cart

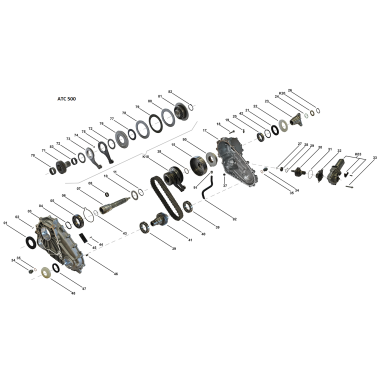

    Bearing kit Bearing kit
    Bearing kit
    Code: YATC500.BK01

    ATC500 & ATC700 BEARING KIT BMW X5/X6, Contains position 05, 08, 20, 39

    Price 11459 € VAT incl.
    Add to cart
    Friction plate
    Friction plate
    Code: B-FRD-ATC3/4/7

    ATC300 + ATC400 + ATC500 + ATC700 - Transfer Case - Aftermarket plate with different friction material design than the OE plate

    Price 1154 € VAT incl.
    Add to cart

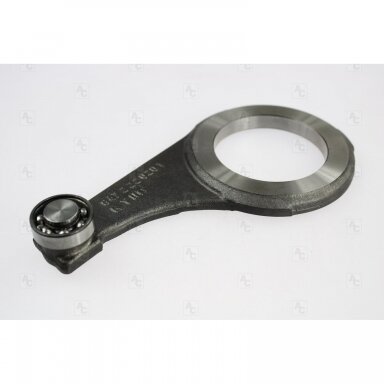

    ATC400, ATC500, ATC700 transfer case actuator ring ATC400, ATC500, ATC700 transfer case actuator ring
    ATC400, ATC500, ATC700 transfer case actuator ring
    Code: YATC400.ACT02

    Transfer case actuator ring for ATC400, ATC500 and ATC700 transfer cases.

    Application: BMW X3, X5, X6 Years: from 2003 Version: straight arm
    Price 13129 € VAT incl.
    Add to cart
    Actuator ring
    Actuator ring
    Code: YATC400.ACT01

    ATC400/500/700 ACTUATOR RING BMW X3/X5/X6 (2003- ) - DOG LEG ARM

    Price 11170 € VAT incl.
    Add to cart

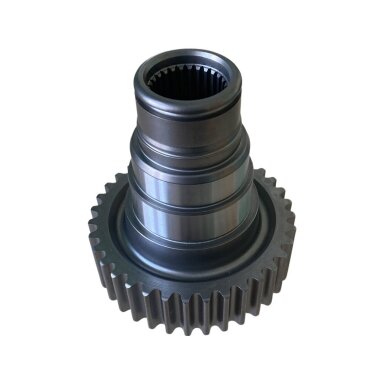

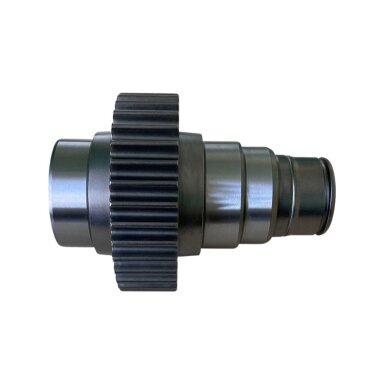

    Spocket Spocket
    Spocket
    Code: SP00195

    ATC700 BMW X5, X6
    (2006-2013)

    Price 28800 € VAT incl.
    Add to cart

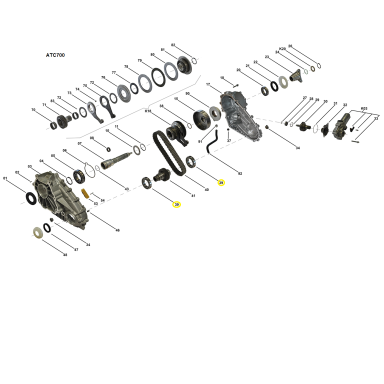

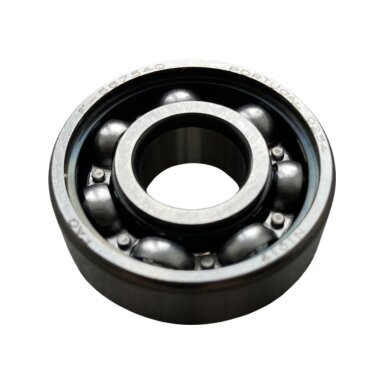

    Bearing Bearing
    Bearing
    Code: SP00152

    ATC450, ATC500, ATC700 - transfer case, sprocket shaft

    Price 2200 € VAT incl.
    Add to cart
    Ball Ball
    Ball
    Code: O-BAL-ATCxx

    ATC300, ATC400, ATC500, ATC700, ITC DD95, ITC PLA - transfer case

    Price 250 € VAT incl.
    Add to cart
    Seal Seal
    Seal
    Code: YATC400.MCS02

    ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, ITC DD295, Hyundai ATC, Maserati ATC
    49,6x90x8 mm

    Price 1183 € VAT incl.
    Add to cart
    Bearing
    Bearing
    Code: YATC300.TOR01

    ATC300/400/500/700/ITC CLUTCH TORRINGTON BEARING (2PER) TRANSFER CASE

    Price 1100 € VAT incl.
    Add to cart

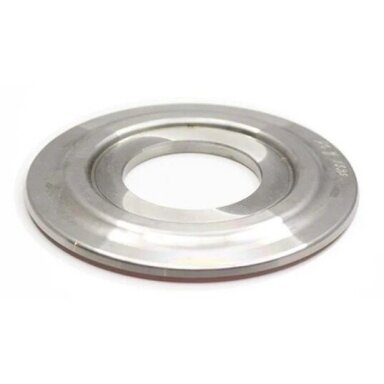

    Piston Piston
    Piston
    Code: YATC500.PIS01

    ATC500/700 PISTON BMW X5/X6 (2003- ) marked No.76 on the diagrams

    Price 11856 € VAT incl.
    Add to cart
    DCD DCS transfer case chain guide kit DCD DCS transfer case chain guide kit
    DCD DCS transfer case chain guide kit
    Code: Y4MATIC.RET01

    Chain guide kit for DCS and DCD 4MATIC transfer cases.

    DCS: used only in transfer cases A2512801700 and A2512802800 DCD: used in all models Kit includes: 2 chain guides and mounting bolts
    Price 5900 € VAT incl.
    Add to cart
    Seal Seal
    Seal
    Code: YATC400.MCS01

    ATC350/400/450/500/700 W61G  CLAD SEAL OUTPUT (RADIAL) 52X80X8/12 mm 27107539265 331401LA0A

    Price 1263 € VAT incl.
    Add to cart
    ATC350 / ATC400 / ATC450 / ATC500 / ATC700 output shaft oil seal ATC350 / ATC400 / ATC450 / ATC500 / ATC700 output shaft oil seal
    ATC350 / ATC400 / ATC450 / ATC500 / ATC700 output shaft oil seal
    Code: YATC400.MCS03

    ATC350/400/450/500/700 CLAD SEAL  FRONT OUTPUT 50x70x8/12 mm

    Price 1123 € VAT incl.
    Add to cart
    ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / DCD Needle Bearing ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / DCD Needle Bearing
    ATC300 / ATC400 / ATC500 / ATC700 / ITC PLA / DCD Needle Bearing
    Code: SP00133

    ATC300, ATC400, ATC500, ATC700, ITC DD295, ITC PLA
    Marked No.83 in the diagrams

    Price 928 € VAT incl.
    Add to cart
    BMW ATC300 / ATC400 / ATC500 / ATC700 Transfer case Drum BMW ATC300 / ATC400 / ATC500 / ATC700 Transfer case Drum
    BMW ATC300 / ATC400 / ATC500 / ATC700 Transfer case Drum
    Code: SP00145

    ATC300, ATC400, ATC500, ATC700 BMW 3, 5, X3, X5, X6
    Alternative code: YATC500.DRU01

    Price 17700 € VAT incl.
    Add to cart
    Disk Spring Disk Spring
    Disk Spring
    Code: SP00299

    ATC300/ATC400/ATC500/ATC700/ITC PLA/DCD

    Price 600 € VAT incl.
    Add to cart
