0DD, DQ400E

  • 0DD [DQ400E, DSG6, s-tronic]

  • The diagram is interactive. Click the number of the part you are interested in or the text inside a box and you will be taken directly to that part’s order page. If a position has several variants, select the correct variant in the window that opens. If the required part link is inactive, write to us at info@transmida.lt or via Viber / WhatsApp +37065526253. Parts whose numbers are not boxed are currently unavailable.






    Friction Plate Kits Overhaul Kits Steel Plate Kits Accumulators Solenoid Sets Bearings TCM

    100. 0DD/DQ400E Mechatronic Cover Gasket 101. 0DD/DQ400E Main Case Gasket 102. 0DD/DQ400E High Voltage Cable Cover Gasket 103. 0DD/DQ400E Mechatronic To Case Right Side Gasket 104. 0DD/DQ400E Mechatronic To Case Left Side Gasket 105. 0DD/DQ400E Mechatronic Plug Connector Seal 106. 0DD/DQ400E Valvebody Gasket 107. 0DD/DQ400E Valvebody Gasket 120. VW DSG Cartridge Filter O-Ring 121. Oil Cooler - Case O-Ring (Need 2) 122. 0DD/DQ400E End Cover O-Ring (75x2) 123. 0DD/DQ400E End Cover O-Ring (9.5x2.5) 150. 0DD/DQ400E Input Drum Seal 151. VW 7SP DSG DQ500 LH+RH Diff Seal 153. DSG/VAG gear selector rod oil seal 201. 0DD/DQ400E End Cover Sealing Ring 250. 0DD/DQ400E K0-Clutch Double Sided Friction Plate 251. 0DD/DQ400E K1 Clutch Plates 252. 0DD/DQ400E K2 Clutch Plates 450. 0DD/DQ400E (Hybrid) Internal Filter - AM 451. 0DD/DQ400E Mechatronic Filter Cartridge 703. 0DD/0DE/725.0 TCM Pressure Sensor (Bosch Style) - No Warranty 750. 0DD/DQ400E (Hybrid) Mechatronic Unit (Check VIN) 801. 0DD/DQ400E End Cover 804. 0DD/DQ400E K0-Clutch Drum 825. VW 0DD/DQ400E Oil Feed Pipe Set (8pcs) - Aluminium 850. 0DD/DQ400E Oil Level Tube 900. 0BH/0DD 7SP DSG Cartridge Filter Cap & O-Ring 901. 0DD/DQ400E End Cap

    0DL, 0DV, 0BH External Filter Cartridge
    0DL, 0DV, 0BH External Filter Cartridge
    Code: 0BH.FIL42
    0BT, 0DD, DQ500 External Filter Cartridge.
    Price 1898 € VAT incl.
    Add to cart
    Check ball
    Check ball
    Code: A-SBL-121389

    724.0: for transmission housing – hydraulic valve, 9,0 mm
    0AM, 0DD: valve body

    Price 050 € VAT incl.
    Add to cart
    Seal
    Seal
    Code: 0DD.GAS16

    0DD/DQ400E MECHATRONIC PLUG CONNECTOR SEAL

    Price 970 € VAT incl.
    Add to cart
    Friction plate kit   -18%
    Friction plate kit
    Code: 0DD.FRK11

    VAG 0DD/DQ400 Kit of friction discs

    Price 20000 € VAT incl.
    24516 € You save 4516 €
    Add to cart
    DQ500 external oil filter DQ500 external oil filter
    DQ500 external oil filter
    Code: 0BH.FIL12

    External cartridge oil filter with O-ring for DQ500 / DSG 7 / S tronic (0BH, 0BT) transmissions.

    OE numbers: 0BH 325 183 A, 0BH325183A; 0BH 325 183 B, 0BH325183B.

    Price 2331 € VAT incl.
    Add to cart
    0DD, DQ400 TCM control module 0DD, DQ400 TCM control module
    0DD, DQ400 TCM control module
    Code: 0DD.ELE02

    TCM control module for 0DD, DQ400 hybrid transmissions.

    OE code: 0DD 927 770 E / 0DD927770E Suitable for: hybrid transmissions only Note: the module can only be cloned
    Price 124501 € VAT incl.
    Add to cart
    0DD, DQ400E input / output shaft rear ball bearing 0DD, DQ400E input / output shaft rear ball bearing
    0DD, DQ400E input / output shaft rear ball bearing
    Code: 0DD.BE03

    Rear sealed ball bearing for 0DD / DQ400E 6-speed hybrid / electric transmissions.

    OE code: 0DD 311 235 C / 0DD311235C Alternative code: O-SEB-0DD-REC Dimensions: 30x72x20 mm Type: sealed deep groove ball bearing Location: input shaft #1, output shaft #1 or #2 – rear
    Price 9400 € VAT incl.
    Add to cart
    0DD, DQ400E output shaft front roller bearing 0DD, DQ400E output shaft front roller bearing
    0DD, DQ400E output shaft front roller bearing
    Code: 0DD.BE02

    Output shaft #1 front roller bearing for 0DD / DQ400E 6-speed hybrid / electric transmissions.

    OE code: 0DD 311 440 B / 0DD311440B Dimensions: 41.5x86.5x20 mm Version: with slot and retaining clip Location: output shaft #1, front
    Price 11257 € VAT incl.
    Add to cart
    0DD, 0DE, 0GC TCM pressure sensor 0DD, 0DE, 0GC TCM pressure sensor
    0DD, 0DE, 0GC TCM pressure sensor
    Code: 0DD.ELE11

    TCM pressure sensor for the LuK clutch control module used in 0DD, 0DE, 0GC and 0BH 725.0 transmissions. 3 pins, 2 tabs, outer diameter 18.8 mm. Manufacturer code: TFPS0000375. No warranty.

    Price 10235 € VAT incl.
    Add to cart
    Bosch pressure sensor for DSG DQ400 / 0DD mechatronic SMP137-245 Bosch pressure sensor for DSG DQ400 / 0DD mechatronic SMP137-245
    Bosch pressure sensor for DSG DQ400 / 0DD mechatronic SMP137-245
    Code: SMP137-245

    Bosch pressure sensor for DSG DQ400 / 0DD mechatronic. Fits 6-speed hybrid transmissions. Bosch number: SMP137-245, SMP137245. Diameter: 18.75 mm.

    Price 17610 € VAT incl.
    Add to cart
    0DD, DQ400E K0 clutch double-sided friction plate
    0DD, DQ400E K0 clutch double-sided friction plate
    Code: 0DD.FRP01

    K0 clutch double-sided friction plate for 0DD, DQ400E hybrid transmissions.

    Dimensions: ID 134.1 mm, thickness 2 mm Teeth: 60 external Friction surface: waffle pattern Manufacturer: BorgWarner
    Price 960 € VAT incl.
    Add to cart
    0DD, DQ400E K0 clutch selective steel separator plate
    0DD, DQ400E K0 clutch selective steel separator plate
    Code: 0DD.STP03

    K0 clutch selective steel separator plate for 0DD, DQ400E hybrid transmissions.

    Dimensions: OD 163.2 mm, thickness 2.0 mm Teeth: 40 internal Manufacturer: BorgWarner
    Price 1700 € VAT incl.
    Add to cart
    ODD, DQ400E K0 clutch steel plate
    ODD, DQ400E K0 clutch steel plate
    Code: 0DD.STP02

    K0 clutch steel plate for ODD and DQ400E 6-speed hybrid/electric transmissions.

    Clutch: K0 / C0 Outer diameter: 163.2 mm Thickness: 1.8 mm Teeth: 40 internal teeth Material: steel
    Price 1250 € VAT incl.
    Add to cart
    0DD, DQ400E K0 clutch selective steel plate
    0DD, DQ400E K0 clutch selective steel plate
    Code: 0DD.STP01

    K0 clutch selective steel plate for 0DD, DQ400E hybrid transmissions.

    Dimensions: OD 163.2 mm, thickness 1.6 mm Teeth: 40 internal Manufacturer: BorgWarner
    Price 1200 € VAT incl.
    Add to cart

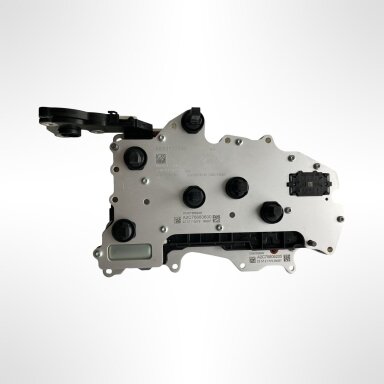

    Control module 0DD927770E Control module 0DD927770E
    Control module 0DD927770E
    Code: A2C77228203

    DQ400, 0DD Mechatronic control module (TCU) without original packaging

    Price 90913 € VAT incl.
    Add to cart
    Bearing Bearing
    Bearing
    Code: 0DD.BE04

    0DD/DQ400E Cooling Jacket Bearing  (55x80x12)

    Price 7100 € VAT incl.
    Add to cart
    Tube kit
    Tube kit
    Code: 0DD.TU11

    VW 0DD/DQ400E OIL FEED PIPE SET (8PCS) -ALUMINIUM-

    Price 4981 € VAT incl.
    Add to cart
    Gasket
    Gasket
    Code: O-MGK-0DD-HO-A

    0DD/DQ400E MAIN CASE GASKET

    Price 3808 € VAT incl.
    Add to cart
    Filter Filter
    Filter
    Code: 0DD.FIL11

    0DD/DQ400E (HYBRID) INTERNAL FILTER

    Price 2987 € VAT incl.
    Add to cart
    Filter Filter
    Filter
    Code: 0DD.FIL12

    0DD/DQ400E (HYBRID) CARTRIDGE FILTER

    Price 1040 € VAT incl.
    Add to cart
    DQ400 0DD Repair kit
    DQ400 0DD Repair kit
    Code: K317900A-VB2

    DQ400 0DD Transmission Valve Body Overhaul Kit

    Price 24900 € VAT incl.
    Add to cart
    Filter Filter
    Filter
    Code: 0DD325433B

    DQ400 0DD

    Price 1041 € VAT incl.
    Add to cart
    SOLENOID SET SOLENOID SET
    SOLENOID SET
    Code: 0DD.SOLKIT

    0DD, DQ400 Dismantled from a new gearbox (USED)

    Price 50000 € VAT incl.
    Add to cart
    DQ400, 0DD Separator Plate
    DQ400, 0DD Separator Plate
    Code: 0DD325277H

    0DD DQ400 Automatic Transmission Valve Body Separator Plate 0DD325277H

    Price 3246 € VAT incl.
    Add to cart
    DQ400E (0DD) Valve Body Gasket DQ400E (0DD) Valve Body Gasket
    DQ400E (0DD) Valve Body Gasket
    Code: 0DD.GAS18

    0DD/DQ400E VALVEBODY GASKET

    Price 1690 € VAT incl.
    Add to cart
    DQ380, DQ381, MB 725.0 O-Ring DQ380, DQ381, MB 725.0 O-Ring
    DQ380, DQ381, MB 725.0 O-Ring
    Code: A-ORG-173436

    0DE, DQ380, 0DD, 0DW, 0DW, 0GC, DQ381,725.0, 9G-Tronic - O-ring for pressure sensor

    Price 150 € VAT incl.
    Add to cart
    0GC, DQ381, 0DD, DQ400E differential double-row deep groove ball bearing 0GC, DQ381, 0DD, DQ400E differential double-row deep groove ball bearing
    0GC, DQ381, 0DD, DQ400E differential double-row deep groove ball bearing
    Code: O-BBG-0GC-DF-A

    0GC, DQ381, 0DD, DQ400E - differential double row deep groove ball bearing 55x90x20/23m

    Price 8953 € VAT incl.
    Add to cart
    Gasket
    Gasket
    Code: 0DD.GAS12

    0DD/DQ400E MECHATRONIC COVER GASKET

    Price 1993 € VAT incl.
    Add to cart
    0DD, 0DE, 0GC TCM pressure sensor 0DD, 0DE, 0GC TCM pressure sensor
    0DD, 0DE, 0GC TCM pressure sensor
    Code: 0DD.ELE01

    0DE DQ380, 0DD DQ400, 0DL DQ500, 0DW DQ381, 725.0, 9G-Tronic TCM PRESSURE SENSOR SMP132-532

    Price 19561 € VAT incl.
    Add to cart
    O-Ring O-Ring
    O-Ring
    Code: 0DD.OR01

    0DD/DQ400E END COVER O-RING (75x2)

    Price 462 € VAT incl.
    Add to cart
    DQ381 (0GC) DSG external filter cover DQ381 (0GC) DSG external filter cover
    DQ381 (0GC) DSG external filter cover
    Code: 0BH.CAP03

    DSG, 0BH, 0BT, DQ500, 0BZ, DL800, 0DL, 0GC, DQ381, 0DV - external filter cover

    Price 3566 € VAT incl.
    Add to cart
    Sealing ring Sealing ring
    Sealing ring
    Code: 0DD.SSR01

    0DD/DQ400E END COVER SEALING RING

    Price 1129 € VAT incl.
    Add to cart
