AWF8G55
-
Aisin AWF8G55 - 8-speed automatic transmission (transaxle), most commonly found in Volvo AWD vehicles (depending on market and trim level).
Examples: Volvo S60, V60, V60 Cross Country, XC40, XC60, S90, V90, V90 Cross Country, XC90. -
Vehicle examples (for reference; trims and markets may vary - for exact identification we need the VIN):
- Volvo S60 (III)
- Volvo V60 (II)
- Volvo V60 Cross Country (II)
- Volvo XC40 (I)
- Volvo XC60 (II)
- Volvo XC90 (II)
- Volvo S90 (I)
- Volvo V90 (I)
- Volvo V90 Cross Country (I)
If you cannot find the required part in our store
- Open the catalogue.
- Using the diagram, find the required assembly and the position number (shown in a red rectangle).
- If a part number is visible, copy it and paste it into our store search field.
- If nothing is found by part number or position, send us an enquiry with the position number(s) and quantity (a screenshot from the catalogue is recommended).
-
If the required part is not numbered (in the red rectangle) or is not shown in the catalogue, please send:
- vehicle make and model,
- VIN,
- description of the required part and a photo (if available).
Where to send your enquiry
Email: info@transmida.lt
Or via WhatsApp / Viber using the phone number shown on our website.1 - 32 of 42
AWF8G45 / AWF8G55 Start/Stop solenoid valveCode: TO-SOL-AWF8G45/55-AStart/Stop unit solenoid valve for AWF8G45, AWF8G55 and AWF8G30 automatic transmissions. Fits Volvo and PSA transmission applications. Quantity per transmission: 1 pc.
Price 8785 € VAT incl.
AWF8G45 / AWF8G55 gear selector actuatorCode: TO-ACT-AWF8G45/55-AGear selector actuator for AWF8G45, AWF8G55 and AWF8G30 automatic transmissions. Quantity per transmission: 1 pc.
Price 3993 € VAT incl.
WasherCode: 3535448010UA80E, UA80F, UB80E, UB80F, AWF8G45, AWF8G55 Oil pump drive gear thrust sliding washers kit [2pcs]
Price 1442 € VAT incl.
Screw PlugCode: O-SCP-151864TG81SC, TG81SD, AWF8G45, AWF8G55 - Screw plug for housing + converter housing
Price 787 € VAT incl.
Price 16935 € VAT incl.
Repair kitCode: TO-OPD-AWF8G45/55-AAWF8G45, AWF8G55, AWF8G30, GA8Q45HW, GA8Q45CW, GA8Y45CW
all parts dismantled from new gearboxPrice 21500 € VAT incl.
AWF8G55 overhaul kit for VolvoCode: AWF8G55.OHK21Overhaul kit for AWF8G55 automatic transmission for Volvo vehicles. Kit version without molded pistons.
Price 35848 € VAT incl.
A130 selector shaft seal 12x22x7Code: A130.MCS03AISIN WARNER & JATCO Selector shaft seal for automatic and CVT transmissions A130. 12x22x7mm
Price 300 € VAT incl.
AWF8G45 / GA8G45AW C1 Clutch Steel plateCode: AWF8G45.STP04C1 (K1) steel plate for automatic transmissions AWF8G45 / AWF8G45AW.
Price 526 € VAT incl.
Price 497 € VAT incl.
Price 855 € VAT incl.
AWF8G45 / GA8G45AW K4 / C4 steel plateCode: AWF8G45.STP06K4 / C4 clutch steel plate for AWF8G45 / GA8G45AW 8-speed automatic transmission. Outer teeth: 32. ID 116.7 mm, thickness 1.8 mm. Used from 2016 onward. Commonly ordered quantity: 4 pcs.
Price 544 € VAT incl.
AWF8G45 / GA8G45AW K3 / C3 steel plateCode: AWF8G45.STP05K3 / C3 clutch steel plate for AWF8G45 / GA8G45AW 8-speed automatic transmission. Outer teeth: 48. ID 157.8 mm, thickness 2 mm. Used from 2016 onward. Commonly ordered quantity: 3–4 pcs.
Price 891 € VAT incl.
AWF8G45 / GA8G45AW C1-Clutch friction plateCode: AWF8G45.FRP04C1 (K1) friction plate for automatic transmissions AWF8G45 / AWF8G45AW.
Price 573 € VAT incl.
AWF8G45 / GA8G45AW K2 / C2 friction plateCode: AWF8G45.FRP03K2 / C2 forward clutch friction plate for AWF8G45 / GA8G45AW 8-speed automatic transmission. Double-sided friction lining with segmented pattern, inner teeth: 52. OD 153.2 mm, thickness 1.5 mm. Used from 2016 onward. Commonly ordered quantity: 4–5 pcs.
Price 830 € VAT incl.
Price 1053 € VAT incl.
AWF8G45 / GA8G45AW K4 / C4 friction plateCode: AWF8G45.FRP06K4 / C4 clutch friction plate for AWF8G45 / GA8G45AW 8-speed automatic transmission. Double-sided friction lining with segmented pattern, inner teeth: 40. OD 134.6 mm, thickness 1.5 mm. Used from 2016 onward. Commonly ordered quantity: 4 pcs.
Price 761 € VAT incl.
AWF8G45 / GA8G45AW K3 / C3 friction plateCode: AWF8G45.FRP05AWF8G45/GA8G45AW C3‑clutch double‑sided friction plate
OD 174,8x1,5x48TPrice 1080 € VAT incl.
SPLIT RINGCode: A-TSR-AW8-IPS-A0C8 (TR80SD), AA80E (TL80SN), AB60E, AB60F, AE80F, UA80E, UA80F, UB80E, UB80F, AWF8G30, AWF8G45, AWF8G55, TG81SC, AW8F22WA - input shaft
Price 140 € VAT incl.
Pan GasketCode: O-OPG-AWF8G45/55-AAWF8G45 FWD / AWD (4x4), AWF8G55 AWD (4x4) - valve body cover (oil pan) moulded rubber gasket
Price 2864 € VAT incl.
09P / 09Q / AWF8G45 O-ringCode: A-ORG-128239found in various AW 8 gearboxes - wiring harness, temperature sensor and/or housing seal ring
Price 140 € VAT incl.
Price 26905 € VAT incl.
Price 7700 € VAT incl.
Price 7700 € VAT incl.
SealCode: AWF8G45.MCS01GA8G45AW, AWF8G45, AWF8G55, UA80E, UA80F, UB80E, UB80F pump front seal (converter housing, input shaft, stator) 52x65x5,7mm
Price 5163 € VAT incl.
AWF8G45 / UA80 input shaft sealCode: O-ISL-AW8-AInput shaft seal for AWF8G45, AWF8G55, UA80E, UA80F, UB80E and UB80F automatic transmissions. Location: converter housing / input shaft / stator. OE numbers: 31492778, 90311-51013, 09S 321 243. Quantity per transmission: 1 pc.
Price 1353 € VAT incl.
SealCode: AWF8G45.MCS04AWF8G45, AWF8G55 - For vehicles with all wheel drive only (4x4, AWD) - axle oil seal, right 62.8X75.2X8 mm
Price 3368 € VAT incl.
AWF8G45 / AWF8G55 Left Axle Shaft SealCode: AWF8G45.MCS03Left-hand axle shaft seal for Aisin AWF8G45 and AWF8G55 8-speed automatic transmissions. Dimensions: 43 x 66.5 x 9 mm. Quantity: 1 pc.
Price 8471 € VAT incl.
AMN8, ATN8, AWF8G30, AWF8G45, AWF8G55 oil PanCode: TO-PAN-AWF8G45/55-AAMN8; ATN8, AWF8G30, AWF8G45, AWF8G55 Oil pan [valve body cover]
9824605880, 35151-8GA010Price 7500 € VAT incl.

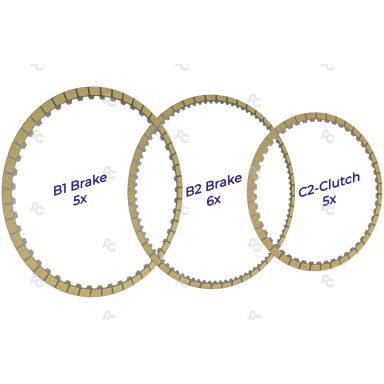

AWF8G55 friction plate kitCode: AWF8G55.FRK01Friction plate kit for AWF8G55 automatic transmissions. The kit contains 30 double-sided friction plates for B1, B2, C1, C2, C3 and C4 clutch / brake assemblies. Aftermarket part.
Price 26648 € VAT incl.
