  •   ZF 8HP / 8P mechatronic guide sleeve
      ZF 8HP / 8P mechatronic guide sleeve 1

    ZF 8HP / 8P mechatronic guide sleeve

    Code: 0501225009
    Inquire about this item
    Price 1293 € VAT incl.
    ( 1069 € VAT excl. )
    Leasing calculators
    • esto3
    • esto

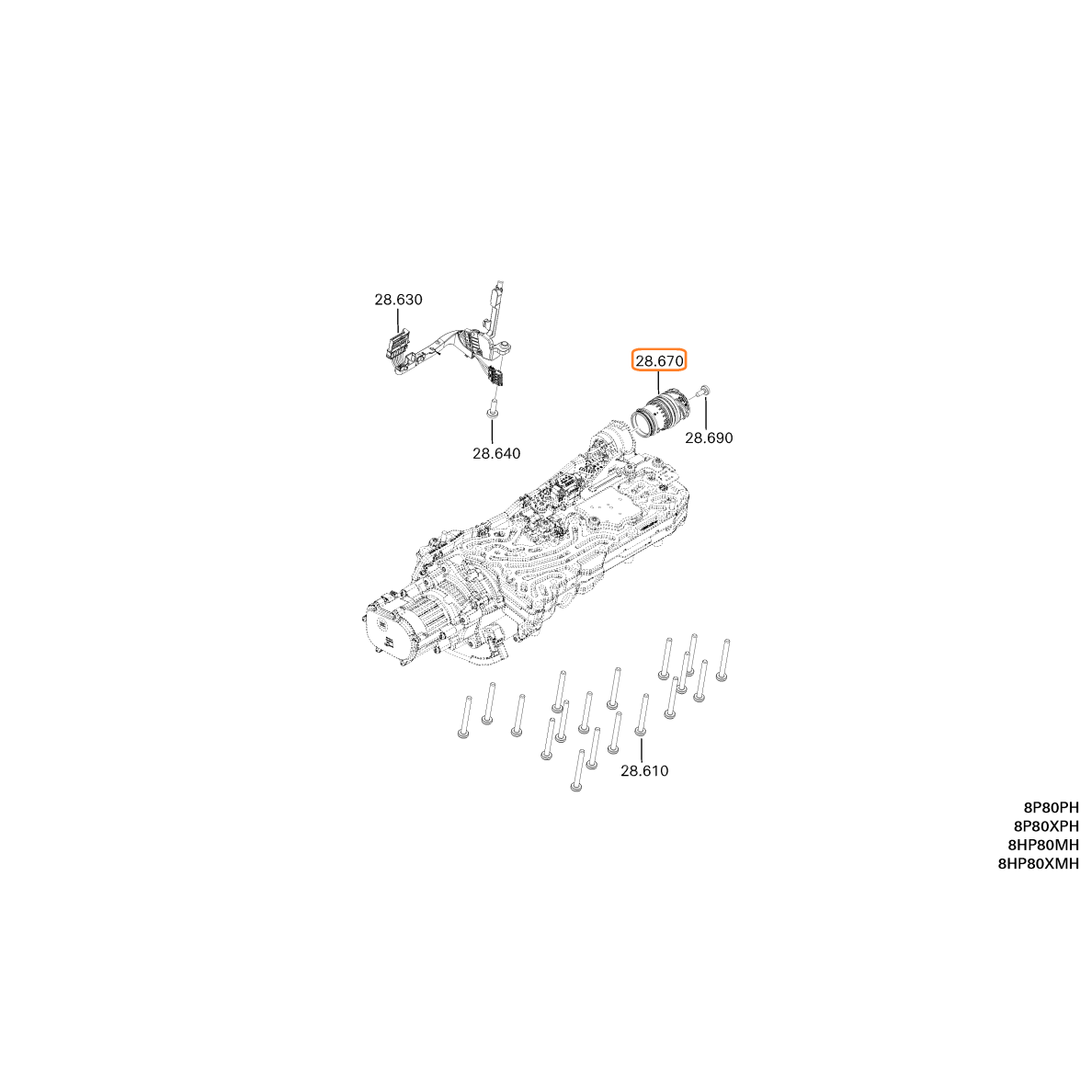

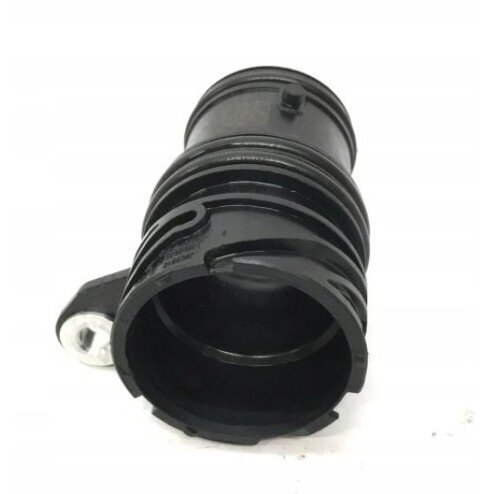

    Mechatronic guide sleeve for ZF 8HP and 8P family automatic and hybrid transmissions. Installation position: mechatronic / valve body assembly, position 28.670. ZF codes: 0501225009, 0501 225 009, 0501.225.009.

    Manufacturer
    OEM
    Brand
    ZF
  • Product description

    Fits transmissions with the following ZF parts list numbers (Stücklistennummer):



    • 8P80PH: 1116 010 006, 008, 015, 016, 017, 018, 020, 021, 023, 024
    • 8P80PH SW: 1116 012 006, 007, 015, 016, 017, 018, 019, 020, 022, 023
    • 8P80XPH: 1116 050 013, 014, 017, 018, 019, 020, 045, 047, 048, 052, 053, 054, 056, 063, 070, 071, 072, 073, 077, 080, 081, 082, 083, 084, 087, 088, 089, 099, 100, 101, 102, 108, 109, 112, 113, 115, 116, 117, 119, 120, 121, 122, 123, 124, 125, 130, 132, 137, 138, 140, 141, 142
    • 8P80XPH SW: 1116 052 039, 047, 051, 053, 054, 061, 066, 068, 069, 070, 071, 072, 074, 080, 084, 085, 086, 087, 089, 105, 107, 112, 118, 119, 120, 121, 122, 123, 126, 127, 128, 129, 130, 131, 132, 133, 136, 137, 139, 140, 141, 142, 143, 144, 149, 151, 152, 153
    • 8P100XPH: 1122 050 024, 025, 026, 027, 032, 035, 036, 050, 051, 052, 053, 055, 056, 057
    • 8P100XPH SW: 1122 052 030, 031, 038, 039, 040, 043, 044, 055, 057, 058, 059, 060, 061, 062, 063, 064
    • 8HP60: 1124 020 026, 028, 034, 035, 036, 041, 042, 043, 044, 045, 048, 049, 050, 051, 052, 053
    • 8HP60 SW: 1124 022 015, 017, 033, 035, 036, 043, 044, 045, 046, 047, 050, 051, 052, 053, 054, 055, 056, 057
    • 8HP60MH: 1124 030 045, 046, 048, 049, 051, 054, 057, 058, 065, 066, 068, 069, 070, 074, 075, 076, 077, 078, 079, 080, 081
    • 8HP60MH SW: 1124 032 049, 051, 054, 055, 058, 059, 060, 061, 068, 069, 071, 072, 077, 078, 079, 080, 081, 082, 083, 084, 085, 086, 087
    • 8HP60X: 1124 040 016, 017, 031, 032, 035, 038, 039, 040, 043, 044, 045, 046, 047, 048, 049, 050, 051, 052, 053, 054
    • 8HP60X SW: 1124 042 007, 032, 033, 034, 038, 041, 042, 043, 046, 047, 048, 049, 050, 051, 052, 053, 054, 055, 056, 057, 058, 059, 060
    • 8HP60XMH: 1124 060 022, 026, 030, 032, 034, 040, 042, 044, 045, 050, 052, 053, 054, 056, 057, 060, 061, 063
    • 8HP60XMH SW: 1124 062 030, 035, 040, 042, 044, 046, 047, 048, 049, 054, 057, 058, 059, 061, 062, 063, 064, 066, 067, 068, 069, 070, 071, 073
    • 8HP80MH: 1126 030 009, 011, 012, 013, 014, 015
    • 8HP80MH SW: 1126 032 005, 007, 008, 009, 010, 011, 012
    • 8HP80XMH: 1126 060 037, 054, 058, 062, 063, 064, 067, 068, 069, 070, 071, 072, 077, 078, 079, 080, 083, 085, 087, 089, 090, 091, 092, 093, 094, 095, 096, 097, 098, 099, 100, 105, 107, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 150, 151, 152, 153, 154, 156, 157, 158, 159
    • 8HP80XMH SW: 1126 062 055, 077, 078, 079, 087, 090, 091, 092, 100, 101, 103, 104, 105, 106, 107, 108, 110, 111, 112, 113, 114, 116, 117, 118, 119, 120, 122, 124, 134, 135, 136, 144, 145, 146, 147, 148, 149, 150, 151, 152, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 178, 179, 180, 181, 182, 183, 184, 185, 186, 187, 188, 189, 191

    Also used in the following ZF mechatronic assemblies: 1116 128 811, 1124 128 813.
