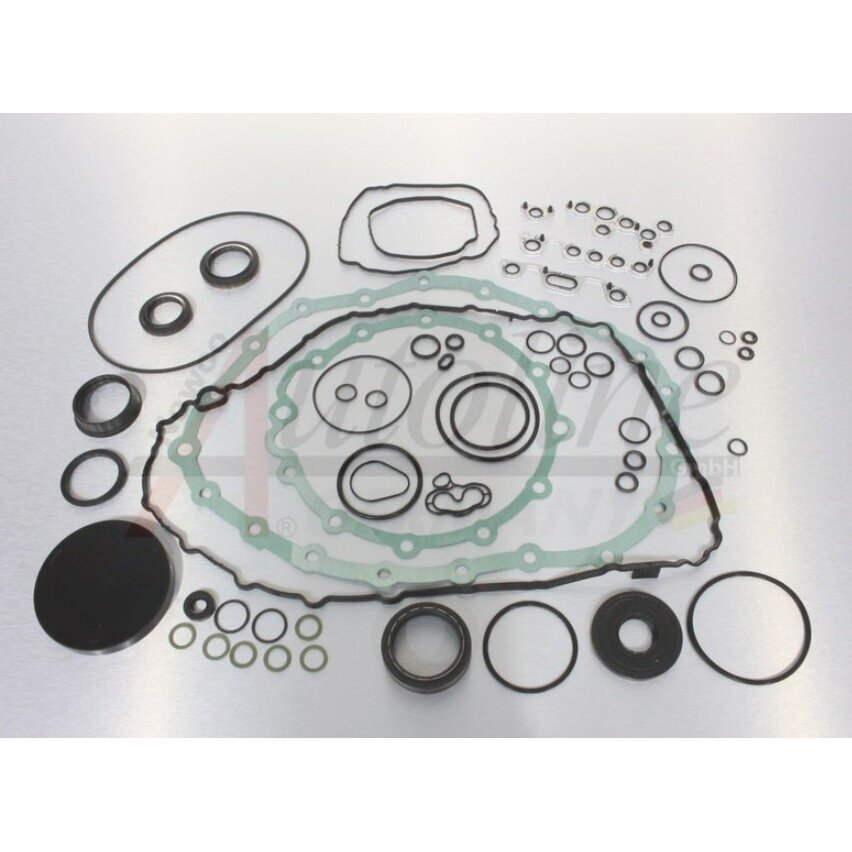

Overhaul Kit

kit content:
sub kit, axle drive
sub kit, double clutch
sub kit, parking lock, control unit
sub kit, bell housing
sub kit, housing
sub kit, oil pan
sub kit, valve body
sub kit, oil pump
sub kit, pressure accumulator
sub kit, pressure sensors
sub kit, control unit
sub kit, engagement clutch
paper gasket kit

o-rings for the solenoids are not included, but will be added as sub-kit A-SUK-0CK-SO from October 2020

The plastic shield behind the end cap is easily damaged during demounting of the end cap. It is available separately - our ref. O-OLG-0CK-A

this kit does NOT contain the gaskets for the early version of the 0CK transmissions

- paper gasket for oil pan 0CK 321 359 D which was used upto 25.05.2017
- moulded gasket for oil pump 0CK 325 577 B - upto 25.05.2015 - gasket has one recess only
both are available as single items:
paper gasket for oil pan: A-OPG-0CK-PA
moulded gasket ro oil pump: A-MRG-0CK-PP
or both in our supplementary kit A-SUK-0CK-EARLY

Apart from external sealing components, we generally do not include internal Mechatronic/Valve body parts (like check balls, screens, o-rings) into our overhaul kits as only some specialized workshops might work on the internal side of the Mechatronic. We will provide a separate Mechatronic/Valve Body kit with part no. A-MTK-0CK, which can be ordered separately. This strategy helps to keep our prices low and save unwanted parts from being wasted.
