  •   9HP48, 9HP50 torque converter oil seal
      9HP48, 9HP50 torque converter oil seal 1

    9HP48, 9HP50 torque converter oil seal

    Code: 9HP48.MCS52
    Inquire about this item
    Price 624 € VAT incl.
    ( 515 € VAT excl. )
    In stock.
    Leasing calculators
    • esto3
    • esto

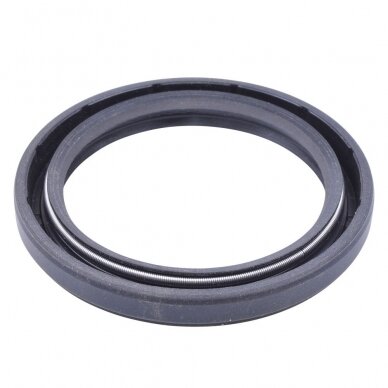

    Torque converter oil seal for ZF 9HP48 and 9HP50 series 9-speed automatic transmissions. Installed in the converter housing.

    • ZF code: 0501.328.904 / 0501 328 904 / 0501328904
    • OE code: 4752960AA
    • Dimensions: 46x60x7 mm
    • Colour: black
    Manufacturer
    OEM
    Brand
    ZF
  • Product description

    Suitable for transmissions with the following ZF parts list numbers (Stücklistennummer):

    • 9HP48Q: 1094 010 009, 022, 023, 026, 027, 028, 030, 032, 036, 038, 039, 044, 045, 049, 059, 063, 064, 065, 067, 070, 071, 075, 076, 077, 078, 079, 080, 081, 082, 086, 087, 088, 090, 091, 092, 093, 094, 099, 102
    • 9HP48Q SW: 1094 012 002, 016, 020, 022, 025, 026, 028, 031, 033, 035, 036, 037, 039, 040, 042, 045, 047, 048, 049, 054, 056, 058, 061, 070, 074, 075, 077, 082, 087, 090, 091, 092, 093, 095, 096, 097, 101, 109, 111, 112, 113, 116, 127, 128, 129, 130, 131, 133, 134, 135, 136, 137, 138, 139, 140
    • 9HP48QX: 1094 020 013, 014, 022, 023, 027, 031, 032, 033, 035, 038, 039, 040, 041, 042, 045, 046, 047, 048, 049, 051, 052, 054, 057, 058, 059, 064, 065, 074, 075, 077, 078, 079, 080, 081, 082, 083, 085, 087, 088, 089, 090, 091, 100, 101, 102, 103, 104, 105, 110, 111, 112, 113, 114
    • 9HP48QX SW: 1094 022 011, 012, 022, 023, 030, 035, 036, 037, 038, 039, 040, 042, 045, 046, 047, 048, 049, 050, 051, 052, 053, 057, 058, 059, 060, 063, 064, 065, 066, 067, 068, 071, 074, 075, 078, 085, 086, 089, 090, 092, 093, 094, 095, 096, 097, 098, 100, 102, 103, 104, 105, 106, 115, 116, 117, 118, 119, 120, 125, 126, 127, 128, 136, 137
    • 9HP48QXR: 1094 030 004, 005, 007, 008
    • 9HP48QXR SW: 1094 032 007, 009, 010, 011, 012, 013
    • 9HP48QXO: 1094 040 001, 002, 006, 010, 011, 015, 017, 020, 022, 023, 025, 036, 037, 040, 042, 043, 046, 047, 048, 049, 050, 055, 057, 058, 059, 060, 064, 067, 068
    • 9HP48QXO SW: 1094 042 001, 002, 014, 018, 021, 022, 023, 024, 026, 027, 028, 032, 033, 035, 037, 046, 048, 053, 057, 058, 060, 061, 062, 063, 064, 065, 066, 080, 081, 094, 095, 096, 097, 098, 099, 101, 102, 103, 104, 105, 106, 107, 108
    • 9HP48QL: 1094 050 001, 002, 006, 007, 009, 010
    • 9HP48QL SW: 1094 052 004, 006
    • 9HP50Q: 1112 010 012, 013, 016, 019, 024, 027, 028
    • 9HP50Q SW: 1112 012 043, 049, 054, 063, 066, 070, 076
    • 9HP50QX: 1112 020 011, 012, 016, 017, 018, 019, 020, 021, 048, 055, 063, 069, 070, 071, 074, 075, 081, 082, 083, 086, 092, 093
    • 9HP50QX SW: 1112 022 007, 008, 016, 017, 046, 047, 048, 049, 060, 061, 062, 080, 081, 082, 092, 093, 094, 095, 105, 109, 110, 111, 112, 113, 114, 116, 117, 118, 122, 123, 124, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 163, 164, 165, 166

    Also used in the following ZF assemblies:

    • BELL HOUSING: 1094 122 113, 141, 152, 153, 162, 165, 179, 180, 181
    • BELL HOUSING: 1112 122 014, 018, 023, 039, 062, 070, 073, 074, 078
