  •   6HP19, 6HP19X, 6HP21, 6HP21X steel plate kit
      6HP19, 6HP19X, 6HP21, 6HP21X steel plate kit 1

    6HP19, 6HP19X, 6HP21, 6HP21X steel plate kit

    Code: 6HP19.STK01
    Inquire about this item
    Price 34155 € VAT incl.
    ( 28227 € VAT excl. )
    Leasing calculators
    • esto3
    • esto

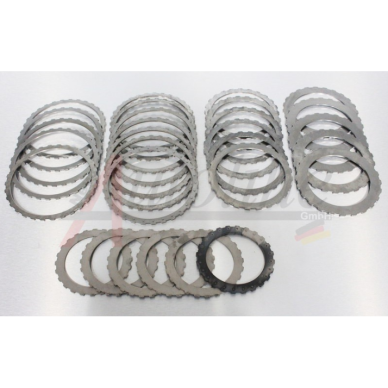

    Steel plate kit for ZF 6HP19, 6HP19X, 6HP21 and 6HP21X automatic transmissions, for all clutches.

    • ZF code: 1071.298.011 / 1071 298 011 / 1071298011
    • Kit contents: 29 steel plates
    Manufacturer
    OEM
    Brand
    ZF
  • Product description

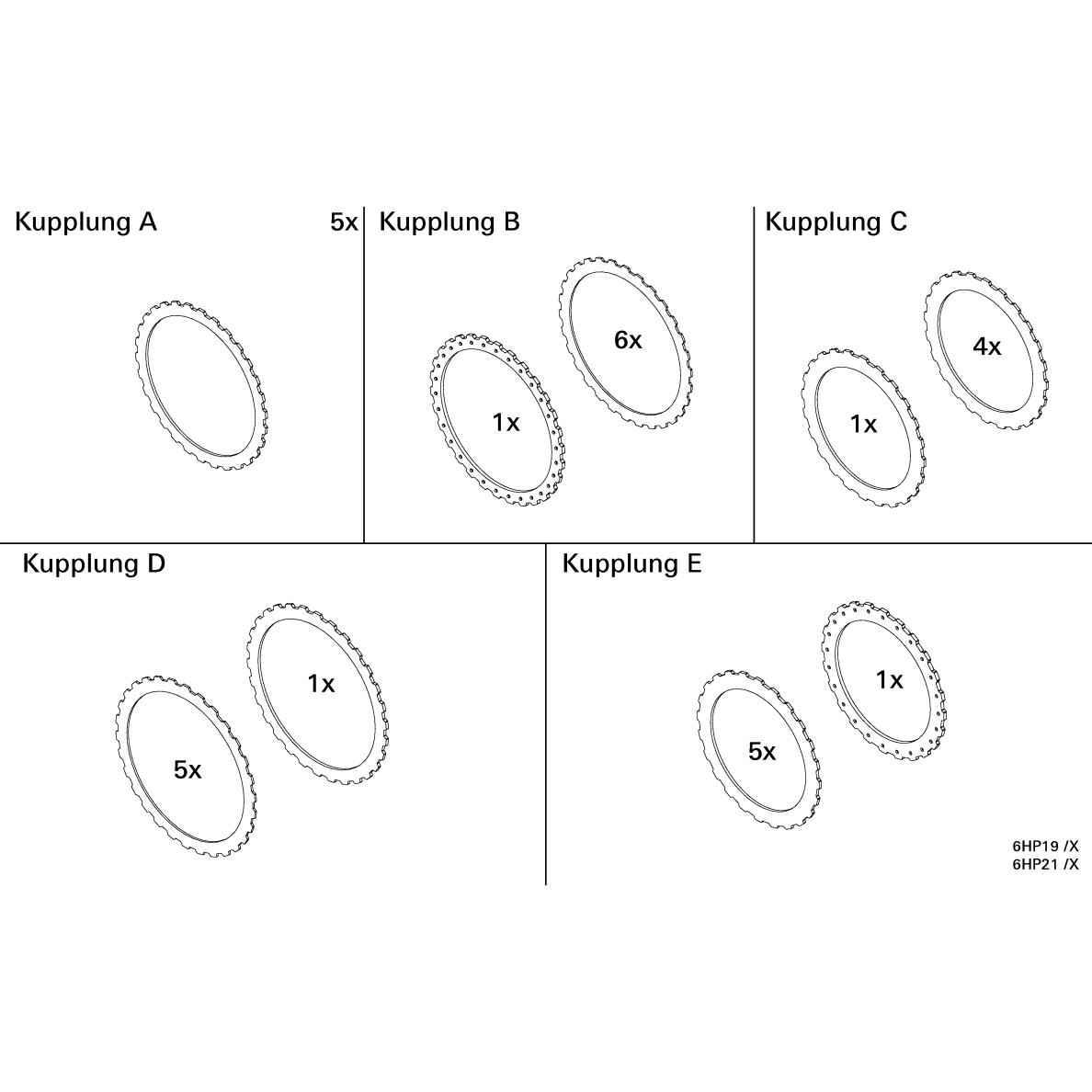

    Kit contents:

    • 5 x A clutch steel plates — ID 154 mm, thickness 3 mm, 30 external teeth
    • 6 x B clutch steel plates — ID 154 mm, thickness 2.4 mm, 30 external teeth
    • 1 x B clutch top plate — ID 154 mm, thickness 3 mm, 30 external teeth
    • 4 x C clutch steel plates — ID 119 mm, thickness 2.5 mm, 24 external teeth
    • 1 x C clutch top plate — ID 119 mm, thickness 3.5 mm, 24 external teeth
    • 5 x D clutch steel plates — ID 129.1 mm, thickness 1.8 mm, 24 external teeth
    • 1 x D clutch top plate — ID 129.1 mm, thickness 3.5 mm, 24 external teeth
    • 5 x E clutch steel plates — ID 97 mm, thickness 2.1 mm, 24 external teeth
    • 1 x E clutch top plate — ID 97 mm, thickness 3.5 mm, 24 external teeth

    Suitable for transmissions with the following ZF parts list numbers (Stücklistennummer):

    • 6HP19: 1071 010 005, 006, 007, 013, 020, 021, 022, 023, 024, 025, 027, 028, 029, 033, 048, 049, 050
    • 6HP19 SW: 1071 012 005, 006, 015, 018, 019, 021, 024, 025, 030, 033, 038, 039, 040, 041, 044, 045, 048, 049, 050, 051, 056, 058, 070, 072, 073, 074, 075, 076, 077, 078, 085, 086, 089, 090, 091, 092, 093, 094, 095, 096, 097, 098, 099, 100, 101, 104, 105, 106, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 125
    • 6HP19X: 1071 020 006, 007
    • 6HP19X SW: 1071 022 011, 012, 015, 016
    • 6HP21: 1071 030 004, 006, 020, 021, 022, 025, 027, 029, 030, 037, 059, 064, 073, 074, 075, 076, 077, 078
    • 6HP21 SW: 1071 032 020, 021, 133, 134, 135, 136, 137, 138, 139, 145, 158, 162, 168, 175, 176, 177, 178, 179, 180
    • 6HP21X: 1071 050 001, 009, 010, 014, 015, 016, 037, 038
    • 6HP21X SW: 1071 052 001, 006, 064, 065, 066, 067, 068, 076, 084, 085
    • 6HP19 LONGITUDINAL: 1071 071 016, 021, 023, 026, 031, 032, 033, 034, 035, 036, 037, 039, 040, 045, 046, 047, 048, 052, 054, 055, 056, 057, 058, 059, 061, 063, 066, 067, 068, 069, 070, 071, 072, 073, 074, 075, 076, 077, 078, 079, 080, 081, 082, 083, 084, 085, 086, 087, 088, 089, 090, 091, 092, 093, 094, 095, 096, 097
    • 6HP19 LONGITUDINAL: 1071 072 003, 004, 006, 007
    • 6HP21 LONGITUDINAL: 1071 073 004, 047, 048, 049, 052, 053, 056, 058, 059, 069, 082, 084, 090, 098, 099, 100, 101, 102, 104
    • 6HP21 LONGITUDINAL: 1071 075 001, 007, 028, 029, 030, 035, 036, 041, 045, 046
